InFocus X2 Service Manual

X2 Service Manual 30
Optical Engine
The optical engine (535-0021-xx) fastens to the bottom case. The engine includes the projection lens,
color wheel assembly, and DMD ECA.
CAUTION The color wheel is unprotected on the side of the optical engine. Avoid touching the color
wheel. The edge of the glass wheel is sharp and can cause personal injury. Touching the color
wheel can break it or leave smudges that degrade the image.
1 Remove the following items:
Lamp module (page 24)
Focus ring (page 6)
Zoom ring (page 17)
Front bezel (page 18)
Rear bezel (page )
Top case (page 39)
Power supply and AC filter ECA (page 6)
Chassis (page 8)
Controller ECA (page 10)
Lamp housing (page 26)

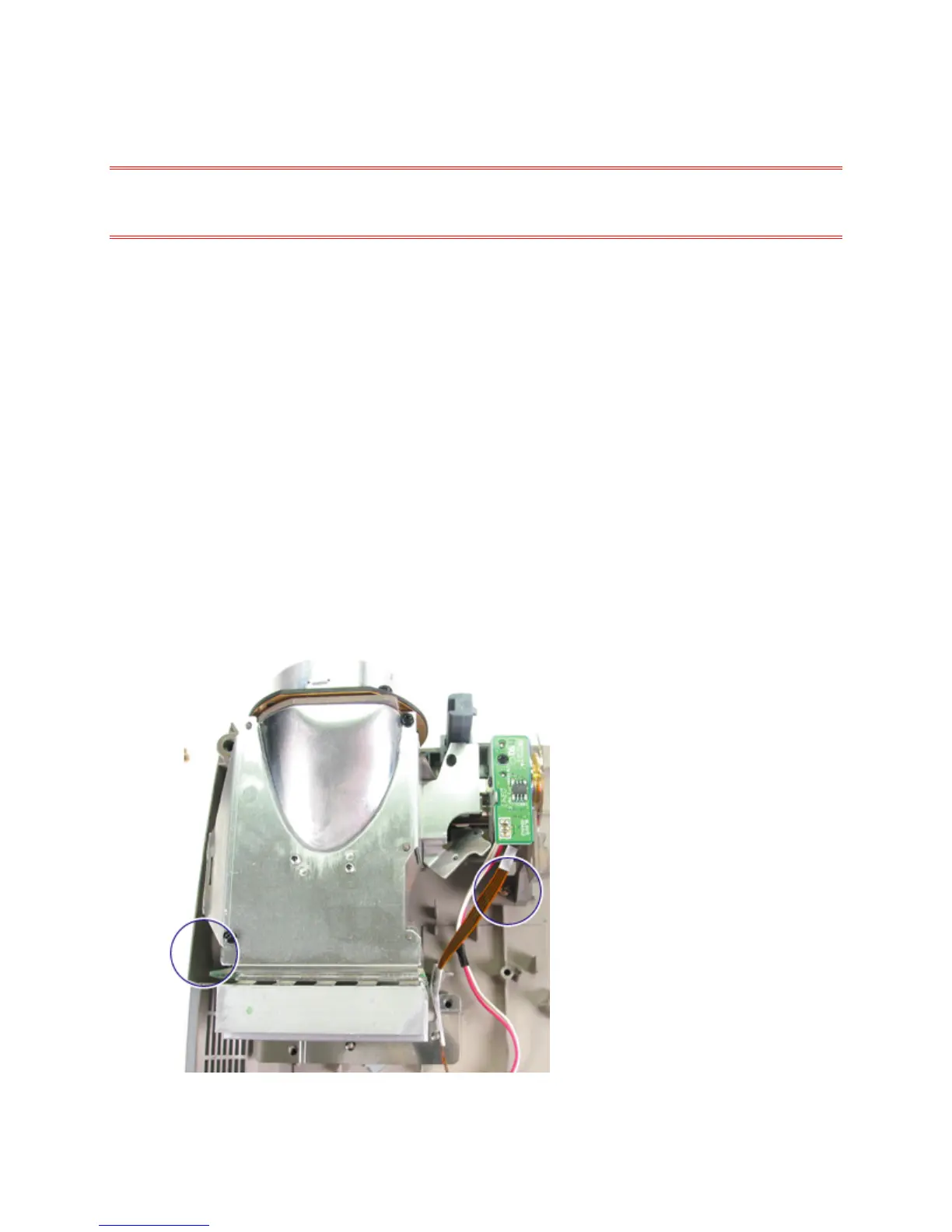

2 Remove the two M3x10 Plastite Phillips screws that fasten the optical engine to the bottom case.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
