InFocus X2 Service Manual

X2 Service Manual 39
Top Case
The top case (505-1840-xx)) covers the top half of the half of the projector. Once you remove the top
case, you have access to FRUs inside the projector. When you replace the top case, you need to adhere
a new nameplate (in label kit, 020-0235-xx) to the top case.
1 Remove the following items:
Focus ring (see page 17)
Zoom ring (see page 17)
Front bezel (see page 18)
Rear bezel (see page 37)

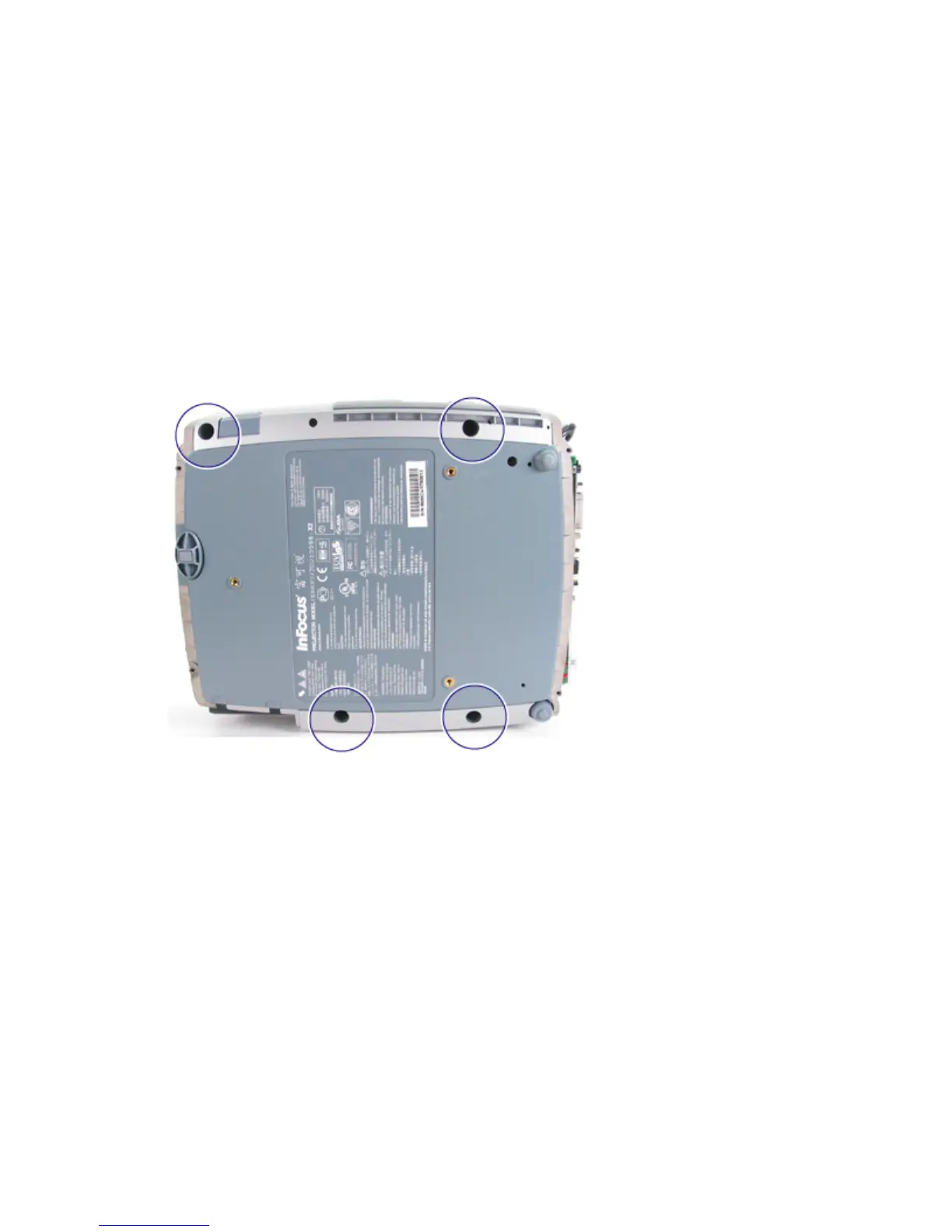

2 Place the projector upside down on a soft work surface. Remove the four M4x18 Plastite Phillips
screws from the bottom case.
3 Holding the top case against the bottom case, turn the projector over and place it right side up on
the work surface.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
