InFocus X2 Service Manual

X2 Service Manual 38

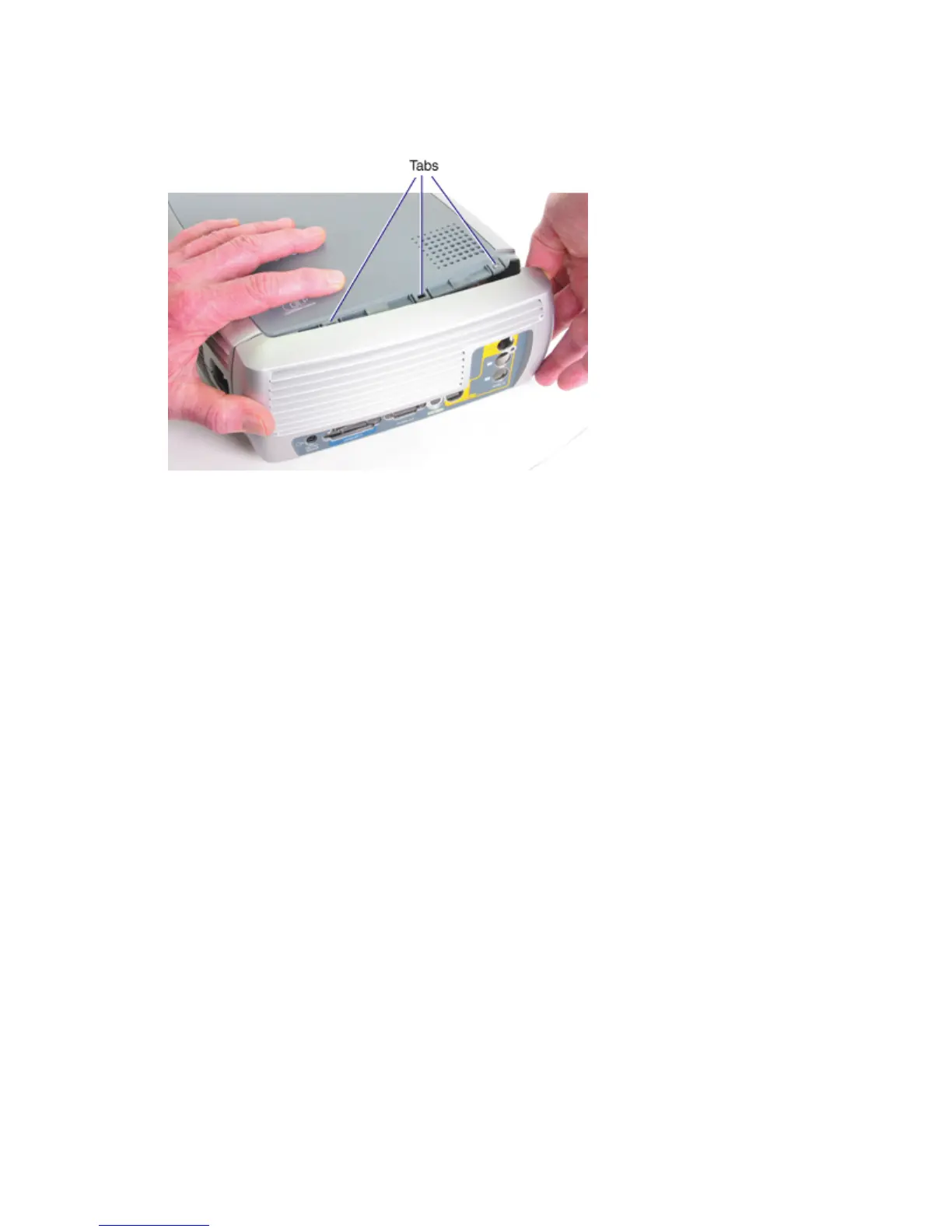

4 Turn the projector right side up on the work surface. Firmly pull the side of the rear bezel away
from the projector. If needed, carefully insert the tip of a flat blade screwdriver into the space
between the rear bezel and top case. Position the screwdriver blade at the location of one of the
slotted receivers and press down to release it.
Assembly Notes
♦ Align the rear bezel against the rear of the projector. Press the bezel into position to lock the
three tabs against the top case.
♦ Tighten the two M3x10 and the M2.6x10 Plastite Phillips screws securely. Do not over tighten the
screws.
♦ When you install a new rear bezel, adhere a new I/O panel label to the outside of the bezel.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
