InFocus X2 Service Manual

X2 Service Manual 15
Elevator
The elevator is located in the front of the projector between the projection lens and the lamp housing. The
elevator is comprised of the elevator spring, elevator actuator, elevator shaft, and a rubber elevator foot.
All these parts are included in the elevator kit (505-1848-xx).
Remove the Elevator Shaft
The elevator fastens to the bottom case between the projection lens and lamp housing.
1 Remove the following items:
Focus and zoom rings (page 17)
Front bezel (page 18)

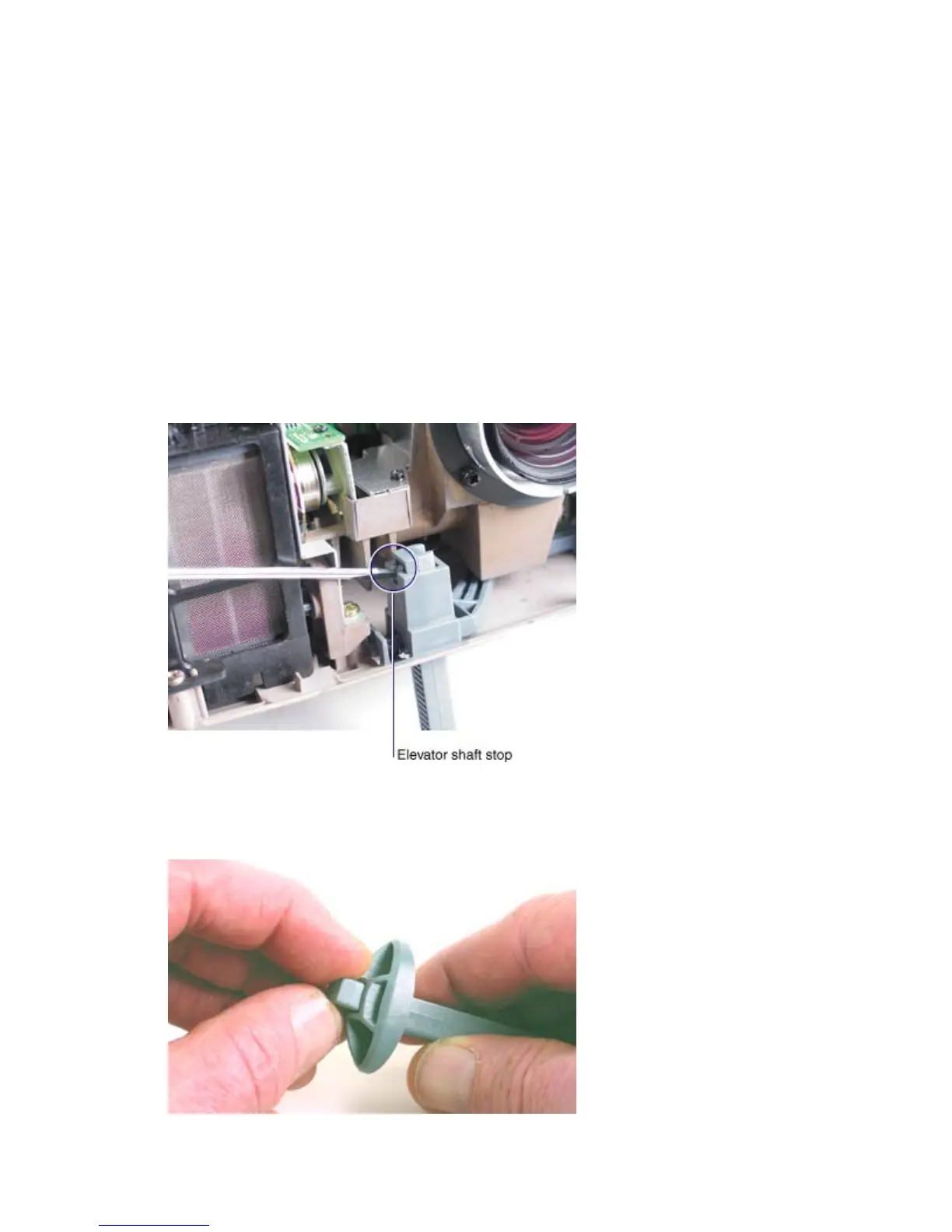

2 Fully extend the elevator shaft. Then use a small flat-blade screwdriver to gently depress the stop
on the elevator shaft. This allows the elevator shaft to pass through the housing and out of the
bottom case.
3 Depress the elevator actuator as you pull the elevator shaft out from the bottom side of the
projector.
4 If you are replacing the elevator shaft, install the rubber foot on the new shaft.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
