Front Bezel
The front bezel (505-1838-xx) covers the front of the projector and helps to secure the top case to the
bottom case. Two screws at the bottom and two tabs and a slotted receiver on the top of the front bezel
hold it in place on the projector. The front IR lens and the inner grill fasten to the inside of the front bezel.
These two parts are not replaceable. When you replace the front bezel, you must remove the lens and
grill, and install them on the new bezel.
The lens cap and tether (505-1843-xx) attach to a tab on the bottom of the front bezel. When you
replace the bezel, you remove the lens cap and tether and install on the new bezel.
1 Remove the following:
Focus and zoom rings (page 17)
Lamp door (page 24)
2 Place the projector upside down on a soft work surface.

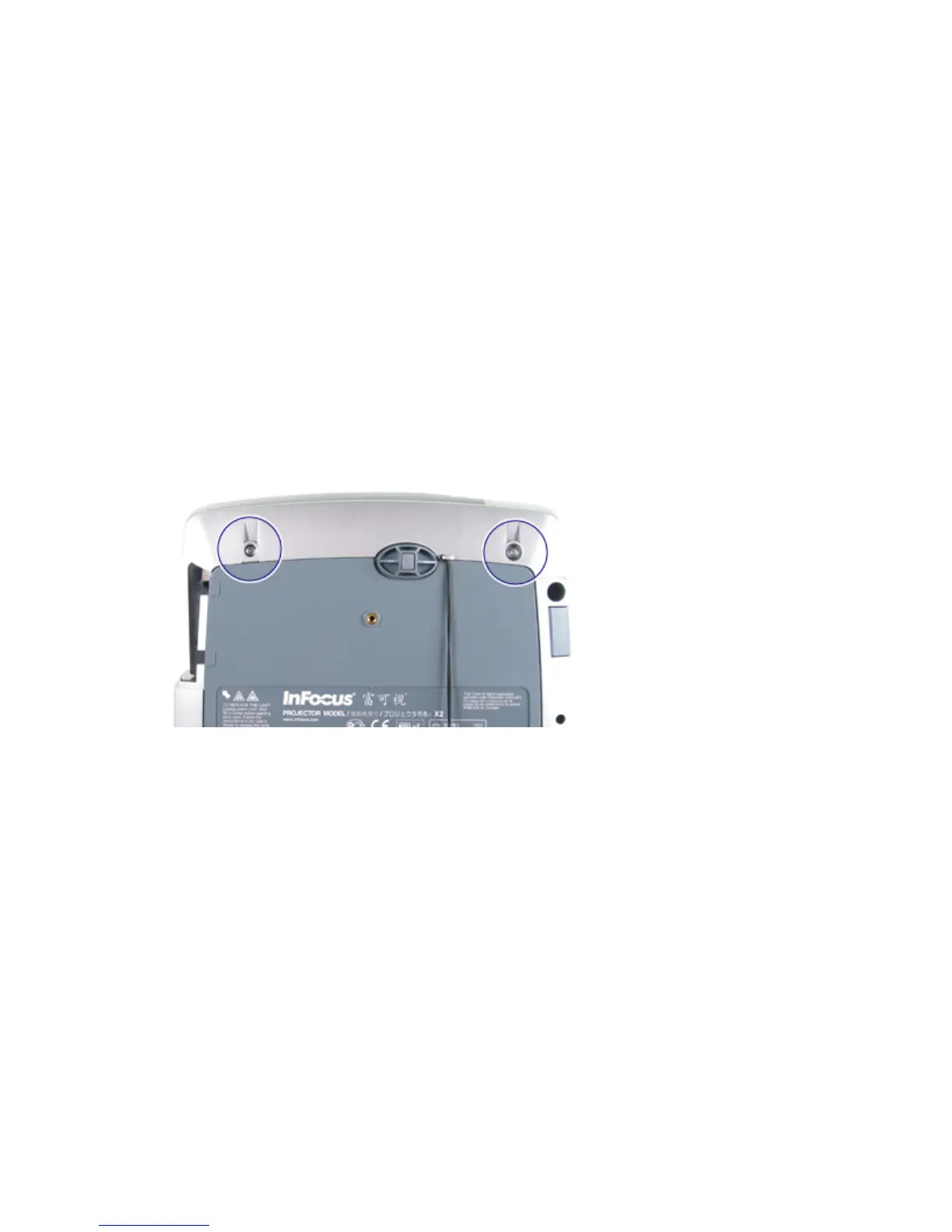

3 Remove the two M3x10 Plastite Phillips screws that fasten the front bezel to the bottom case.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
