X2 Service Manual 37
Rear Bezel
The rear bezel (505-1837-xx) fastens to the rear of the projector and surrounds the I/O ports. The I/O
panel label (available in the label kit, 020-2135-xx) adheres to the outside of the rear bezel.
If you replace the rear bezel, you need a replacement I/O panel label. You cannot remove the label from
the rear bezel.
1 Place the projector upside down on a soft work surface.

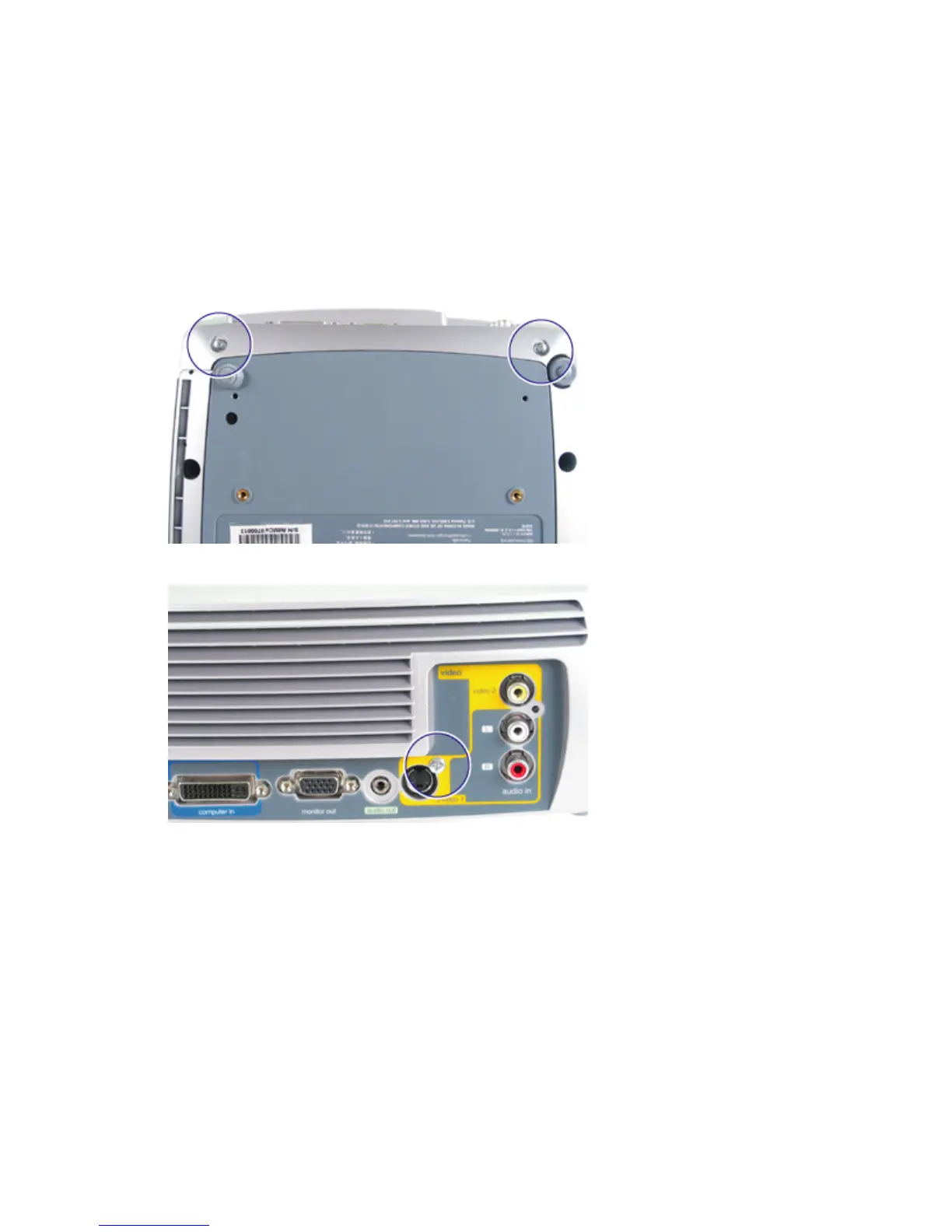

2 Remove the two M3x10 Plastite Phillips screws that fasten the rear bezel to the bottom case.
3 Remove the M2.6x10 Plastite Phillips screw that fastens the rear bezel to the chassis.
