InFocus X2 Service Manual

X2 Service Manual 36

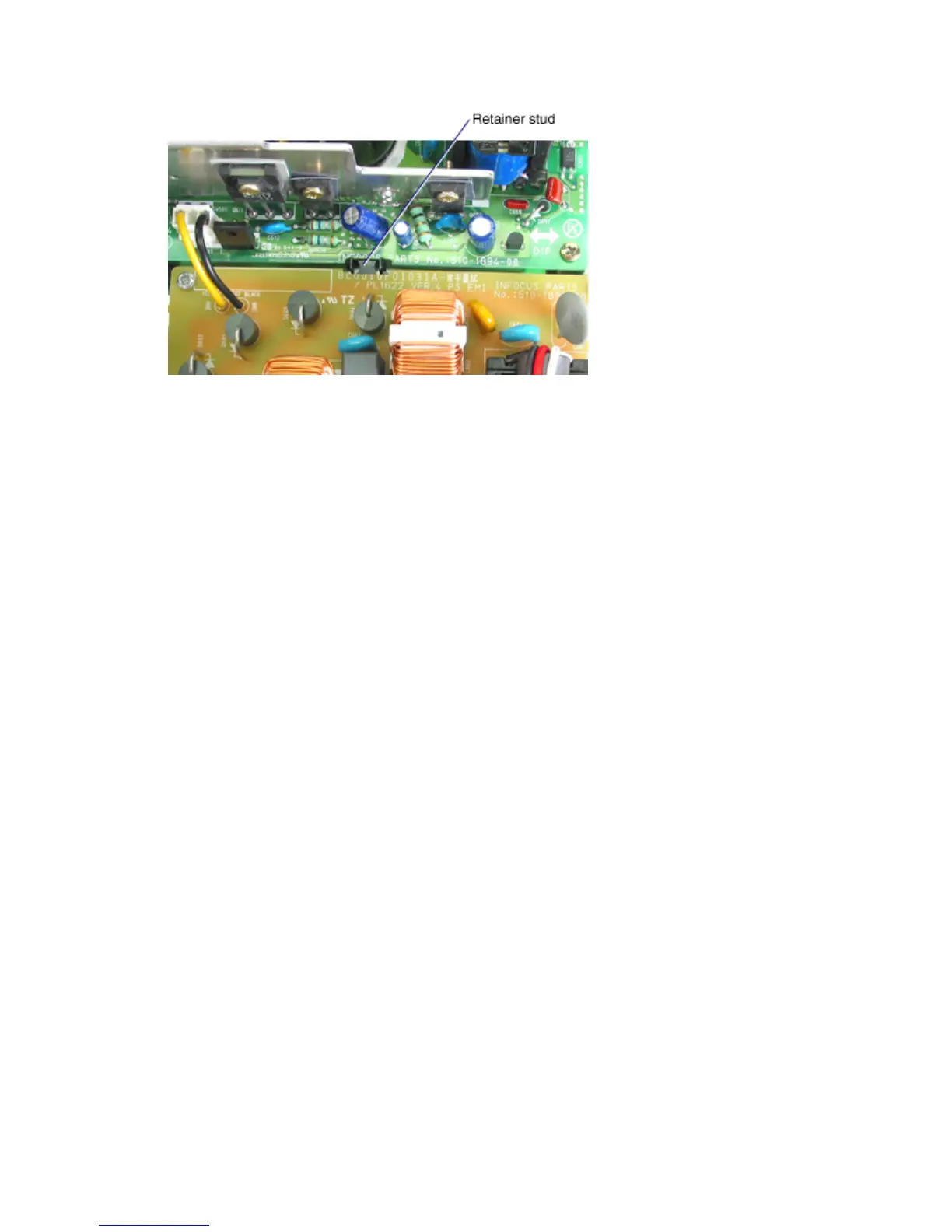

3 Squeeze the tabs on retainer stud that secures the AC filter ECA to the chassis. Then lift the ECA
away from the chassis.
Assembly Notes
• Ensure that the two retainer studs on the chassis engage the slots in the power supply and AC
filter ECA. Press down on the ECAs to lock the retainers into the slots.
• Tighten the seven M3x12 Plastite Phillips screws securely. Do not over tighten the screws.
• Connect the ground terminal to the chassis. Tighten the M4x6 Phillips screw securely.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
