InFocus X2 Service Manual

X2 Service Manual 29

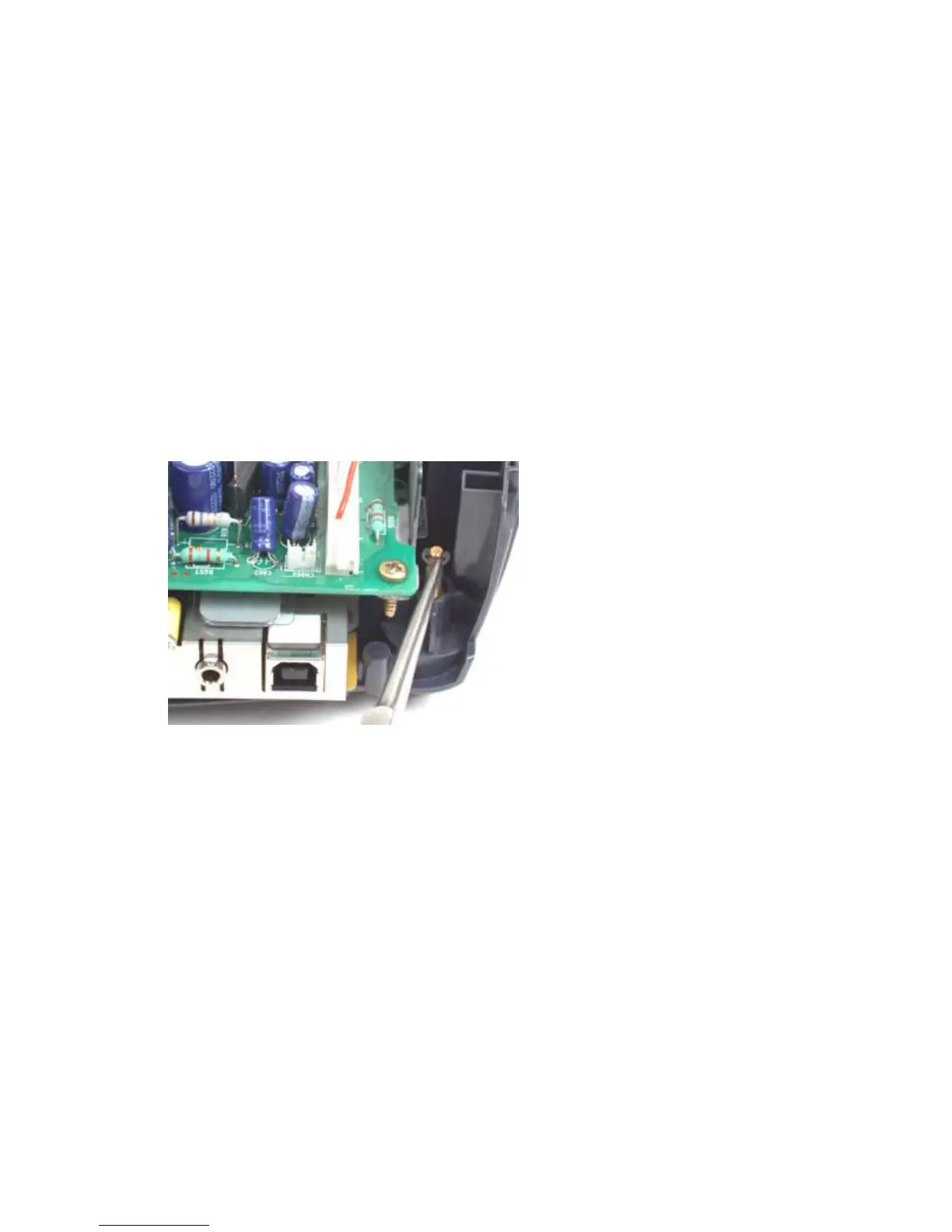

Leveling Foot
The leveling foot (340-1118-xx) consists of a threaded foot and a retainer. Rotating the leveling foot
extends or retracts it in the bottom case. The shaft threads through the bottom case from the outside. A
circular retainer stops the leveling foot at its maximum extension.
The leveling foot is located at the right rear corner of the projector.
1 Remove the following items:
Focus and zoom rings (page 17)
Front bezel (page 18)
Rear bezel (page 37)
Top case (page 39)
2 Rotate the leveling foot clockwise to fully retract it into the bottom case.
3 Use a needle-nosed pliers to remove the retainer from the groove at the top of the leveling foot
shaft.
4 Rotate the leveling foot counterclockwise until it detaches from the bottom case.
Assembly Notes
♦ Replace the retainer in the groove at the top of the leveling foot shaft. Make sure the retainer fully
seats.
♦ Adjust the leveling foot so that it is level with the bottom of the projector.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
