X2 Service Manual 23

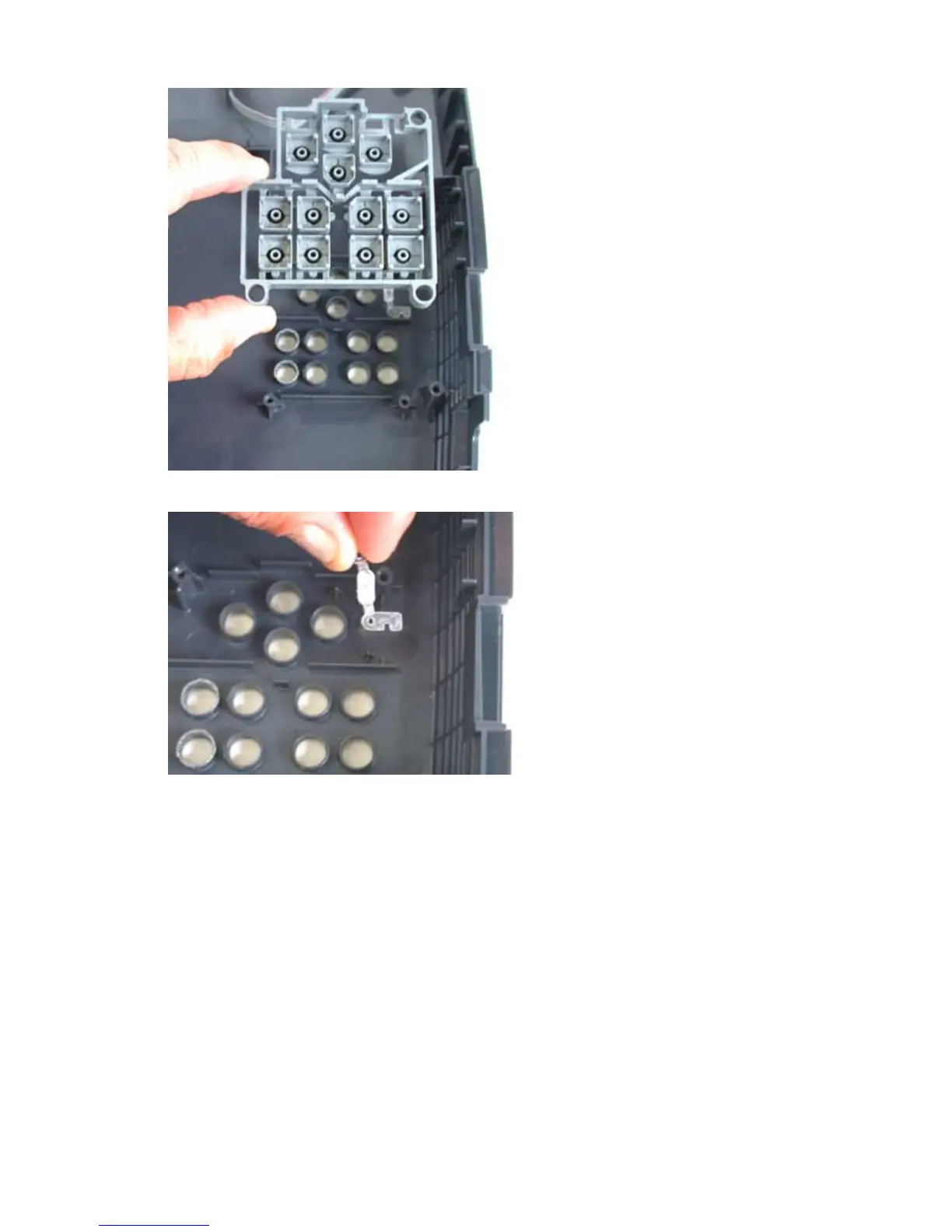

3 Lift the key set out of the top case.
4 Lift the LED cover out of the top case.
Assembly Notes
♦ The keypad ECA, the front IR receiver ECA, the key set and the LED cover fit only one way in the
top case.
♦ Make sure that the alignment holes in the LED cover fit over the pins in the top case.
