X2 Service Manual 22

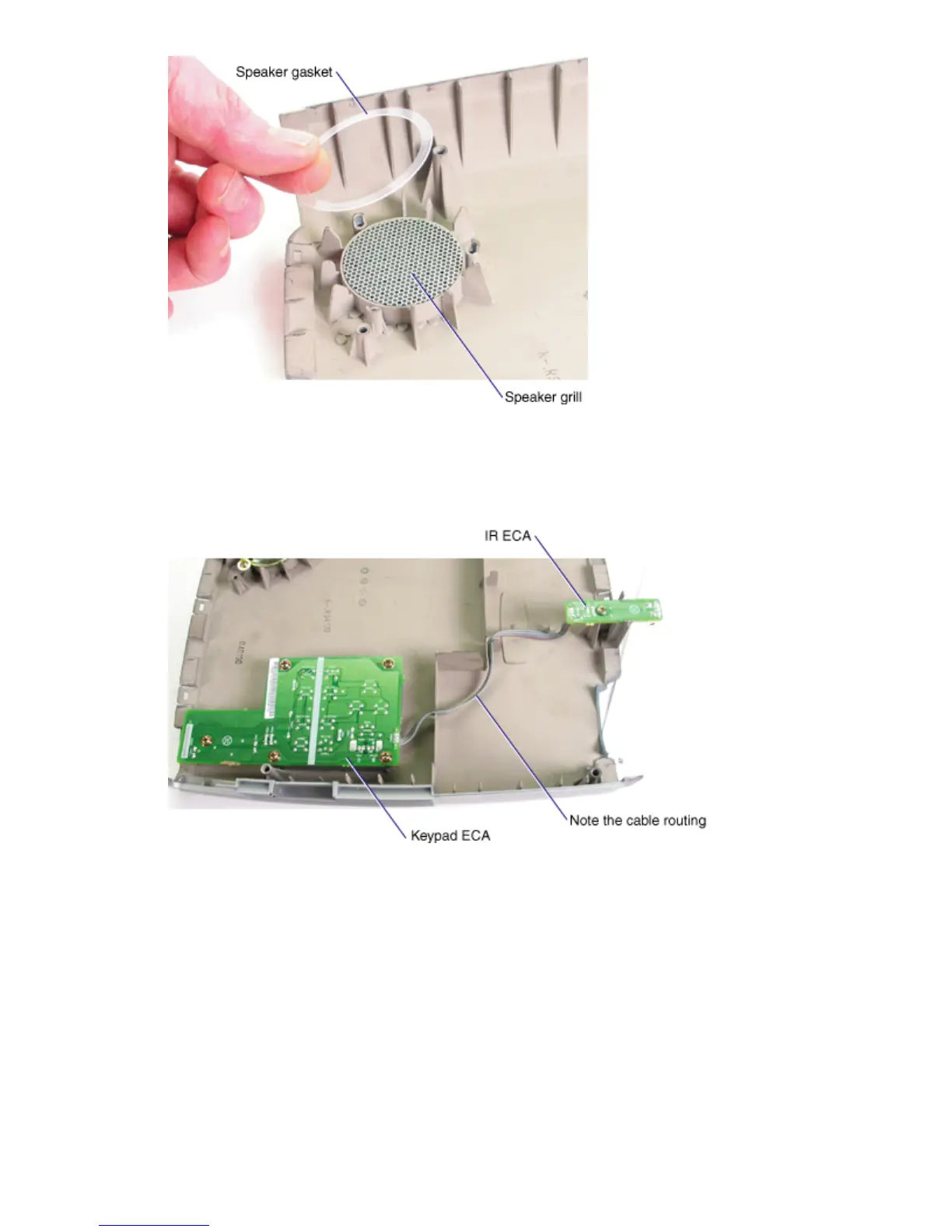

Keypad and IR ECAs
1 Remove the five Phillips screws that fasten the keypad to the top case. Remove the single
Phillips Plastite screw that fastens the IR ECA to the case. Note the cable routing before you
remove the two ECAs
2 If you are replacing the top case with a new one, follow the directions below to remove and
replace the keypad parts. Otherwise reinstall the two ECAs.
