X2 Service Manual 61

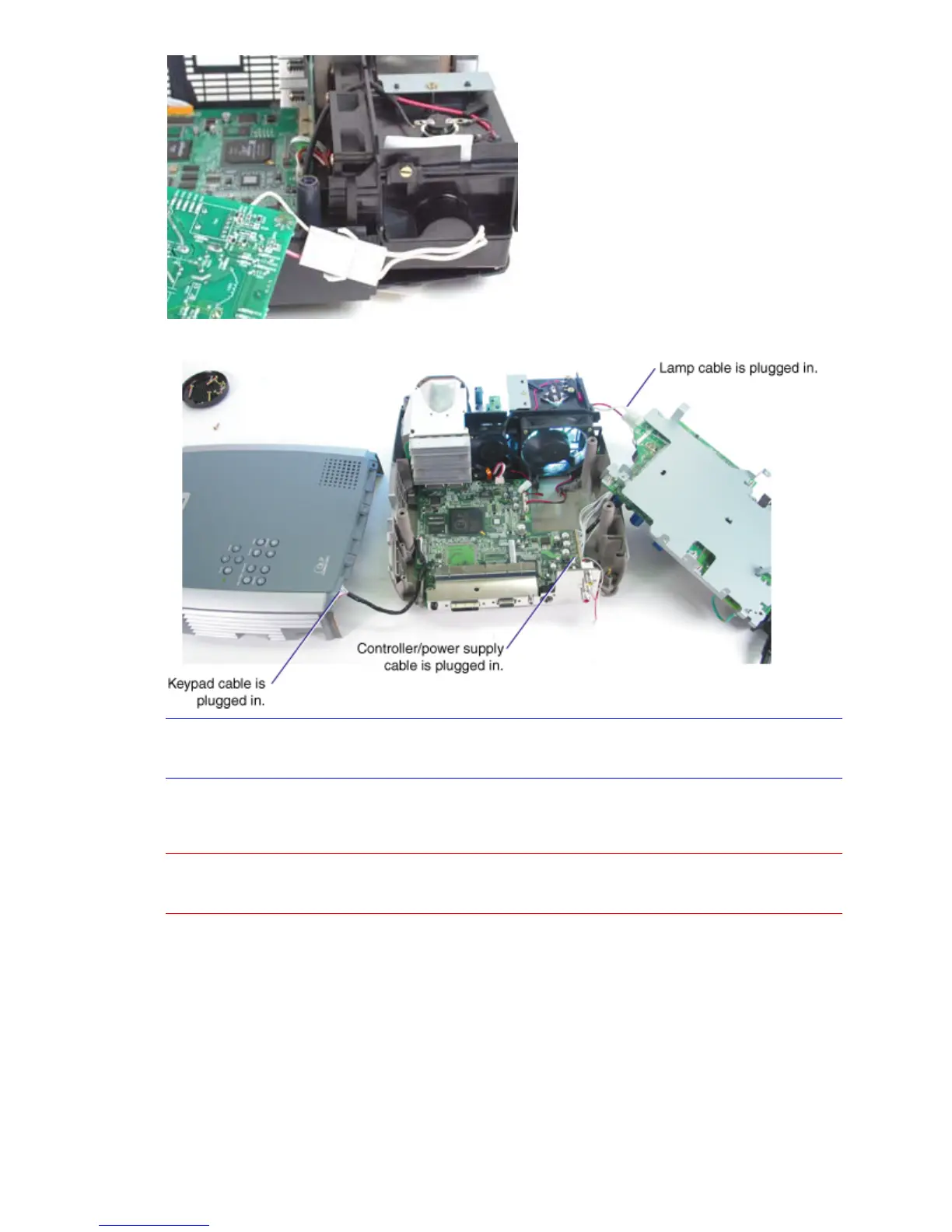

6 Position the top case right side up at the rear of the projector. Plug the keypad cable in.
NOTE The illustration above shows the power supply and AC filter ECA temporarily fastened the
chassis. This is optional.
7 Connect the projector to AC power.
8 Power up the projector, and check the voltages using the illustration on the next page.
CAUTION When you start the projector, there is voltage present on the controller ECA and power
supply. Be very careful where you probe and where you touch.
To Next Page
