InFocus X2 Service Manual

X2 Service Manual 9
4 Lift the chassis near the rear of the projector, then slide the chassis rearward to disengage the

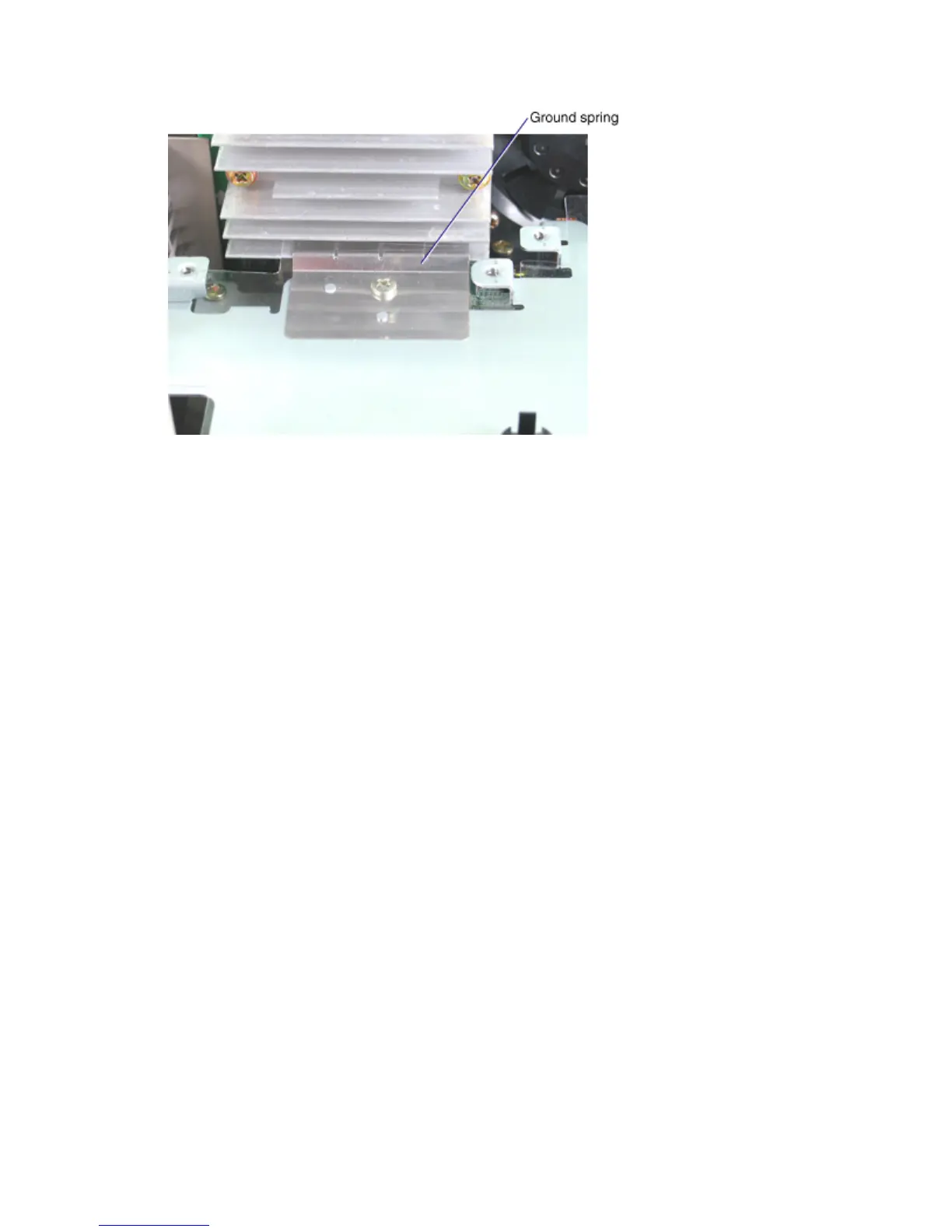

ground spring from the bottom side of the DMD heat shield on the optical engine.
Assembly Notes
♦ Place the chassis into the projector, then slide the chassis forward to engage the ground spring
against the bottom side of the DMD heat shield on the optical engine.
♦ Position the chassis over the two 15-pin D-sub connectors on the I/O panel. Replace the four jack
screws and torque them to 2 in-lbs (.226 Nm).
♦ Replace and tighten the seven M3x10 Plastite Phillips screws securely. Do not over tighten the
screws.

InFocus X2 Specifications

General

Number of colors	16.78 million colors
Native aspect ratio	-
Projection distance	- m
Vertical scan range	50 - 85 Hz
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	- \
Projector native resolution	SVGA (800x600)
Focal length range	- mm
Number of built-in speakers	1
Lamp type	SHP
Lamp power	200 W
Service life of light source	3000 h
Full HD	No
Analog signal format system	NTSC, PAL
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	- dB
Placement	Desktop
Product type	Standard throw projector
Product color	Gray
Power consumption (standby)	- W
Harmonized System (HS) code	85286200

Weight and Dimensions

Weight	3100 g
