Evolve System Operator Manual
Section 4: Device Description
19

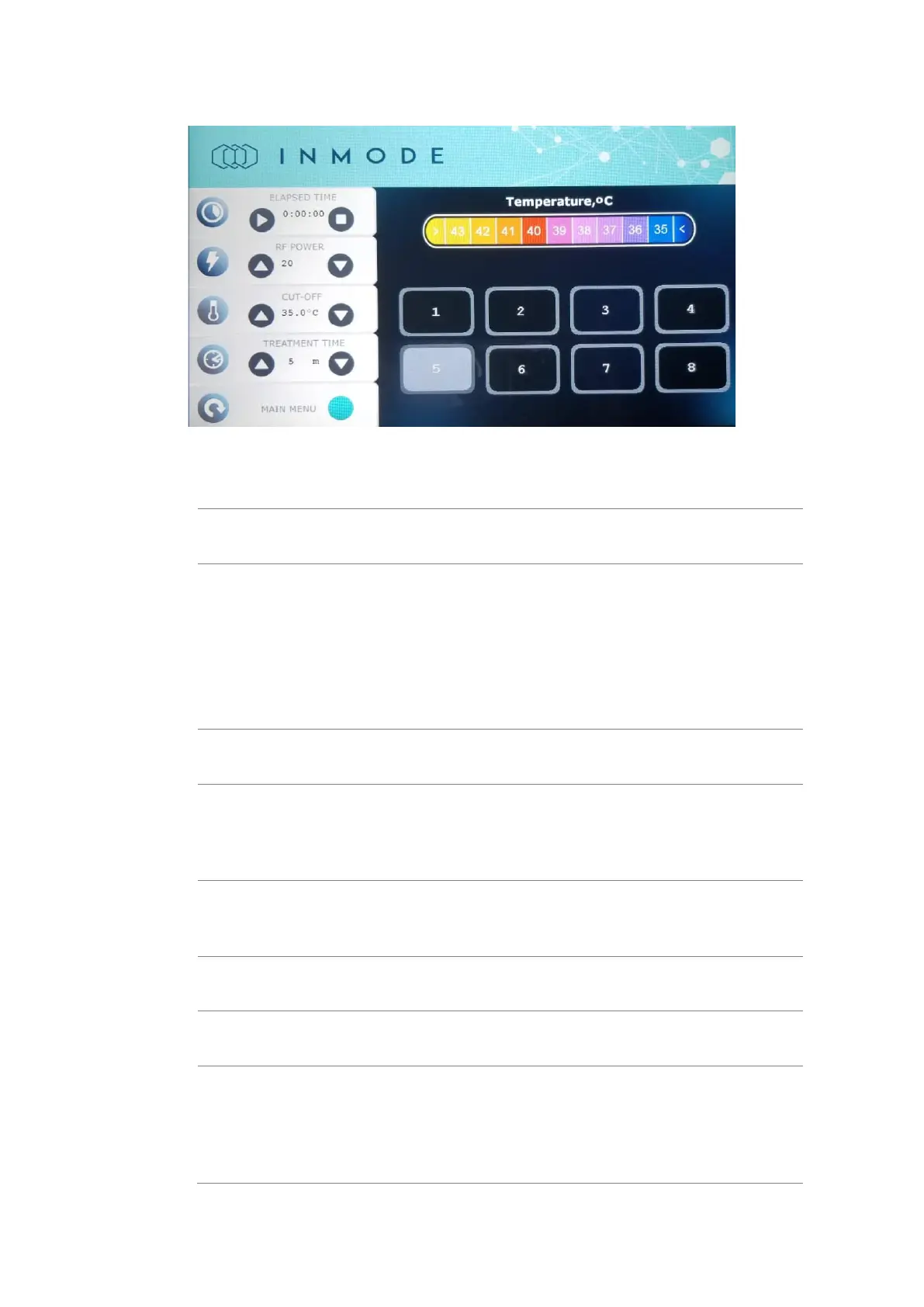

Figure 4-7: Tite Treatment Screen
This indicator shows elapsed time from the beginning of
treatment activation.
This button activates the treatment. After pressing the ‘Start’
button, the system is in ‘Active’ mode. The icon will then change
to ‘Pause’ and clicking on it will pause the treatment (‘Pause’
mode). The ‘Elapsed Time’ counter will not reset while pausing
the treatment.
Any attempt to change the settings during treatment, switches
the system to Pause mode.
This button Stops the treatment and switches the system to
Standby mode. The ‘Elapsed Time’ counter resets.
RF power is changed within the limits allowed for the connected
Applicator. Power level settings are changed from 20 to 60
energy levels. The System starts up at minimal power level
setting.
This indicator shows the cut-off temperature, which is
adjustable from 35 to 43
o
C. This indicates measured
temperature at which the RF delivery is stopped.
This indicator shows time when RF energy is applied sequentially
to the Applicators.
Applicators
Status Indicators
(1-8)
These indicators show online the measured skin surface
temperature for each of the connected Applicators. The color of
the buttons is in accordance with the temperature scale above.
The grey color indicates that Applicator is not connected or not
recognized.
