Controller CO3000

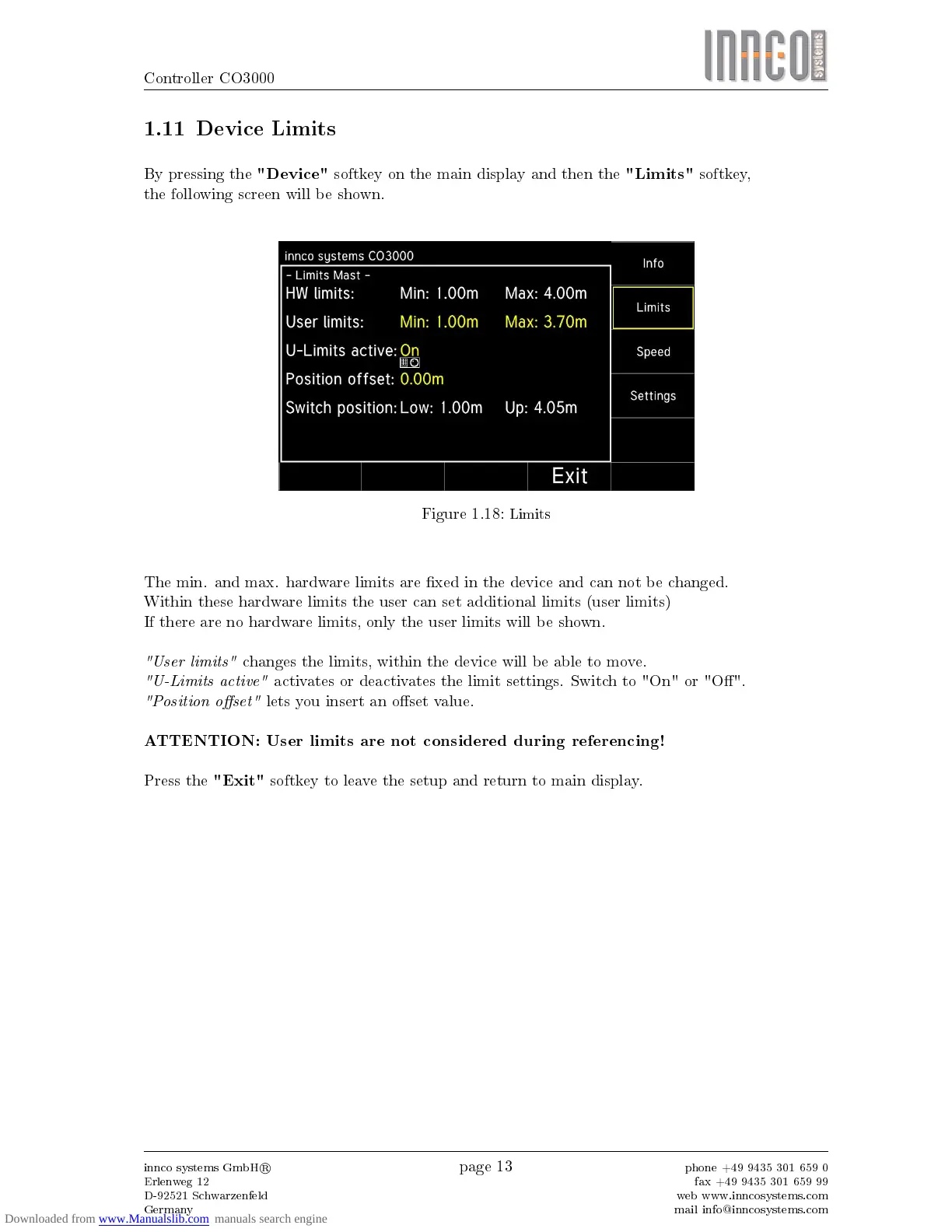

1.11 Device Limits
By pressing the "Device" softkey on the main display and then the "Limits" softkey,
the following screen will be shown.
Figure 1.18: Limits
The min. and max. hardware limits are xed in the device and can not be changed.
Within these hardware limits the user can set additional limits (user limits)
If there are no hardware limits, only the user limits will be shown.
"User limits" changes the limits, within the device will be able to move.
"U-Limits active" activates or deactivates the limit settings. Switch to "On" or "O".
"Position oset" lets you insert an oset value.
ATTENTION: User limits are not considered during referencing!
Press the "Exit" softkey to leave the setup and return to main display.
