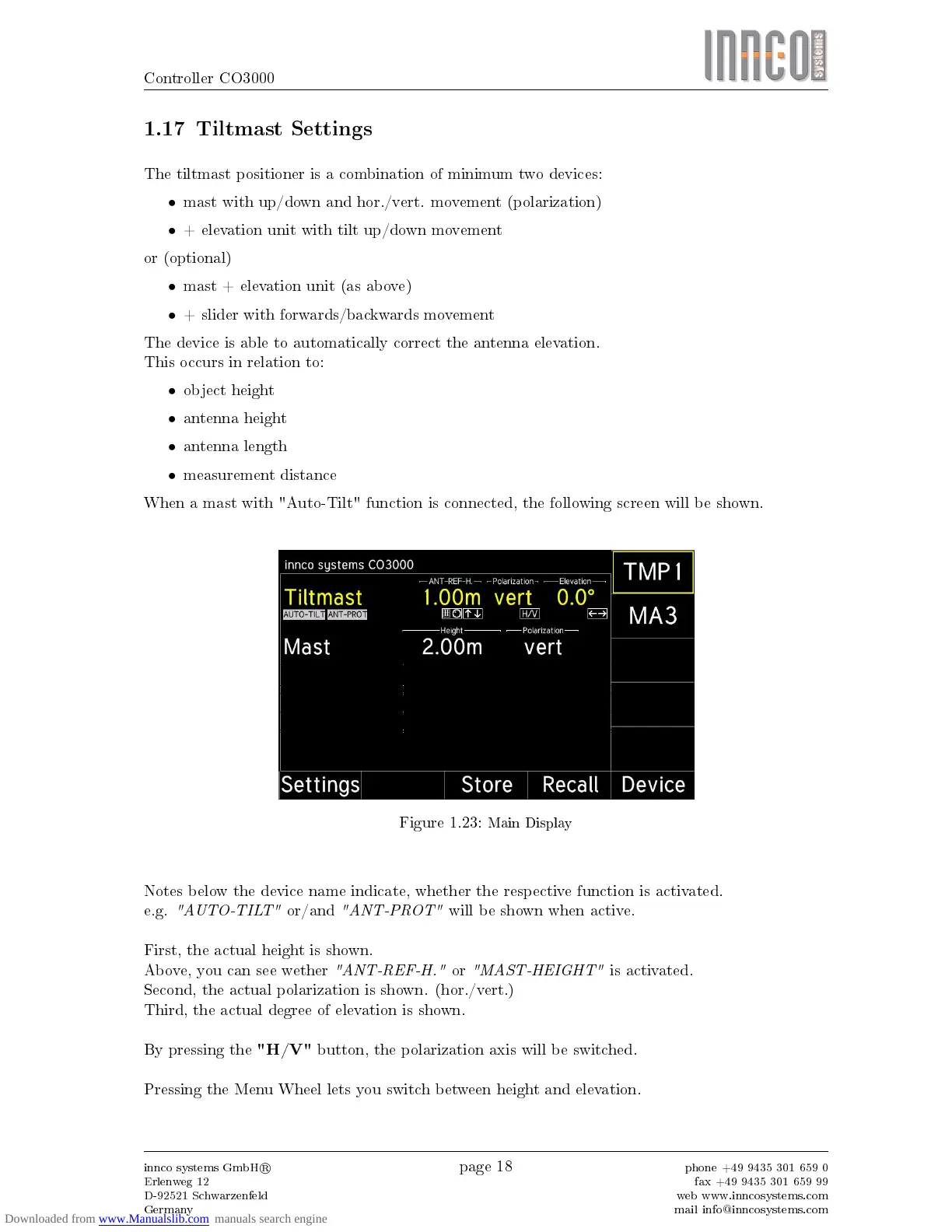

Controller CO3000
1.17 Tiltmast Settings
The tiltmast positioner is a combination of minimum two devices:
•
mast with up/down and hor./vert. movement (polarization)
•
+ elevation unit with tilt up/down movement
or (optional)
•
mast + elevation unit (as above)
•
+ slider with forwards/backwards movement
The device is able to automatically correct the antenna elevation.
This occurs in relation to:
•
object height
•
antenna height
•
antenna length
•
measurement distance
When a mast with "Auto-Tilt" function is connected, the following screen will be shown.
Figure 1.23:
Main Display
Notes below the device name indicate, whether the respective function is activated.
e.g.
"AUTO-TILT"
or/and
"ANT-PROT"
will be shown when active.
First, the actual height is shown.
Above, you can see wether
"ANT-REF-H."
or
"MAST-HEIGHT"
is activated.
Second, the actual polarization is shown. (hor./vert.)
Third, the actual degree of elevation is shown.
By pressing the
"H/V"
button, the polarization axis will be switched.
Pressing the Menu Wheel lets you switch between height and elevation.
