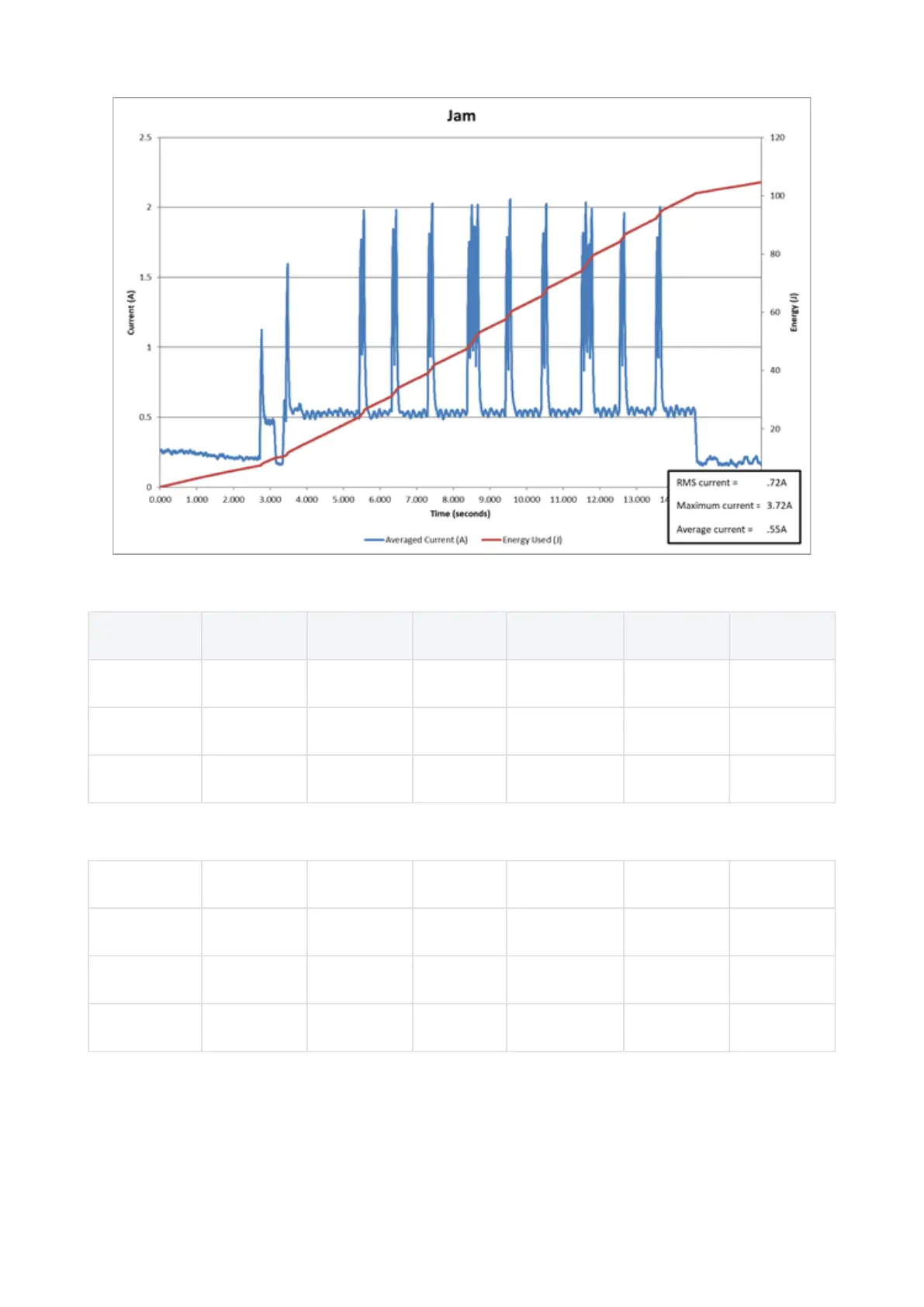

Picture 6: Note Jam Waveform
Table 1: Average Current Comparison between Each Unit Tested
Serial No Power On Power Off Idle Note Accept Note Reject Jam
545187 0.19A 0.18A 0.21A 0.24A 0.25A 0.62A
545195 0.2A 0.14A 0.17A 0.26A 0.27A 0.62A
545198 0.19A 0.14A 0.17A 0.26A 0.27A 0.55A
Table 2: Maximum Current Comparison between Each Unit Tested
Serial No Power On Power Off Idle Note Accept Note Reject Jam
545187 2.44A 0.36A 0.36A 3.04A 2.88A 3.4A
545195 2.4A 0.28A 0.32A 2.96A 2.88A 3.6A
545198 2.56A 0.28A 0.32A 2.84A 3.08A 3.72A
Peaks of > 3A were seen for very minimal time periods (μS).
