Innovative NV10 - NV200 Operations Manual; Figure 6 - Typical Serial Output: Transmission of the Value 20 (Decimal)

NV200 Operations Manual 16
NV10 Operations Manual 15
NOTES:
• The NV10 will operate at 9600 Baud rate if Inhibit 2 line is held low when powered
up.
• The NV10 will not be enabled in serial I/O mode if Inhibit 3 line is held low when the
unit is powered up. A software enable must be sent to enable the validator.
The data is formatted as follows:
1
-
start bit, 8
-
data bits,
2
-
stop bits,
300 baud.
Vend 1
(pin 1)
idle start
bit
0
bit
1
bit 2
bit 3
bit 4
bit 5 bit 6 bit
7
stop stop idle
3.3
ms
0 0 1 0 1 0 0 0 = 20dec

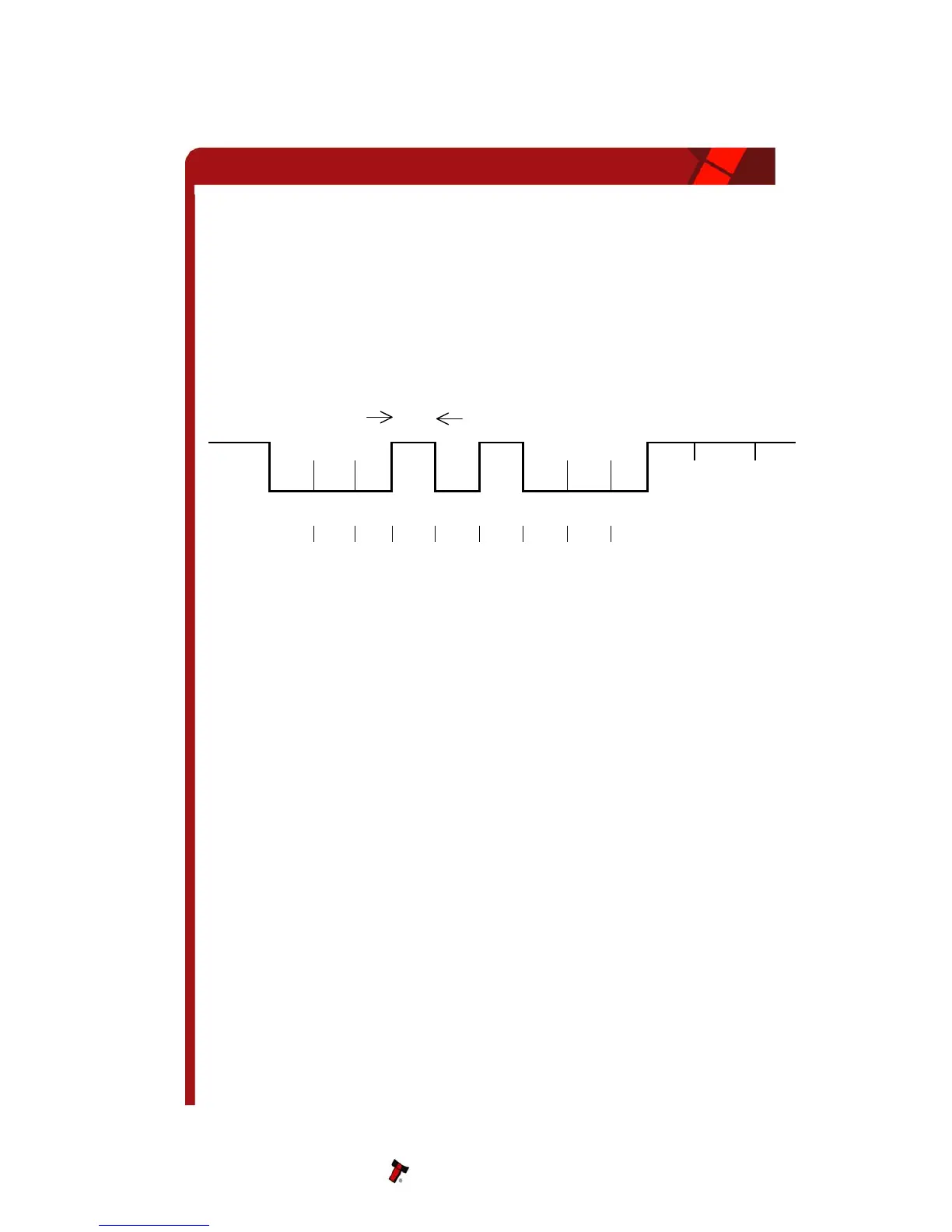

Figure- 5 Typical Serial Output: Transmission of the value 20 (decimal), Note not recognized
Copyright Innovative Technology Ltd 2008 GA333-5
