Selection of Options
‑102‑

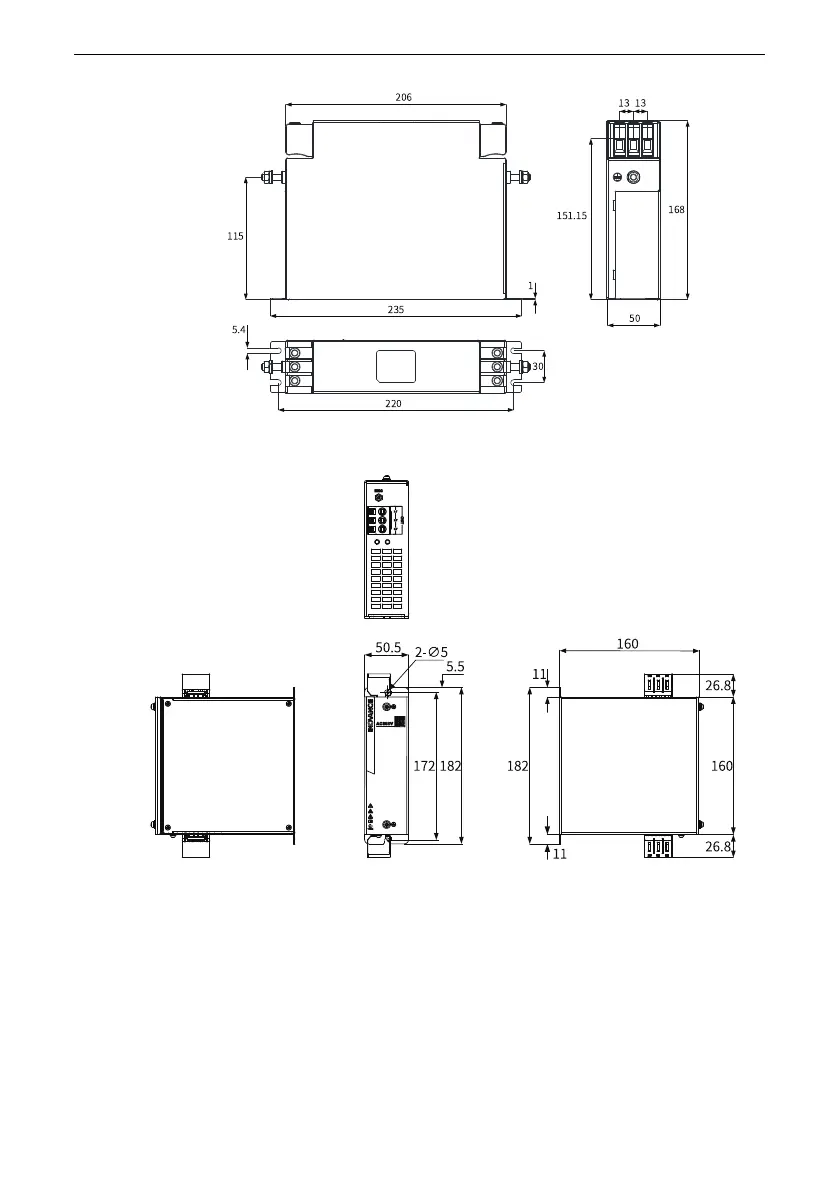

Figure 4‑9 Filter dimensions (FN3288‑40‑33) (unit: mm)
Figure 4‑10 Inovance Filter dimensions (FIL800) (unit: mm)
4.1.3.2 Simple Filter
A simple filter can be used to suppress the RF electromagnetic noise generated from
the power grid and the AC drive during operation. For equipment using residual
current devices (RCDs), a simple filter can be installed at the input end of the drive to
avoid RCD malfunctions during operation, as shown in "
Figure 4–12
"
on page 104
Installation of the simple filter
.
