Inovance MD800 Series Guide

Mechanical Design
‑34‑

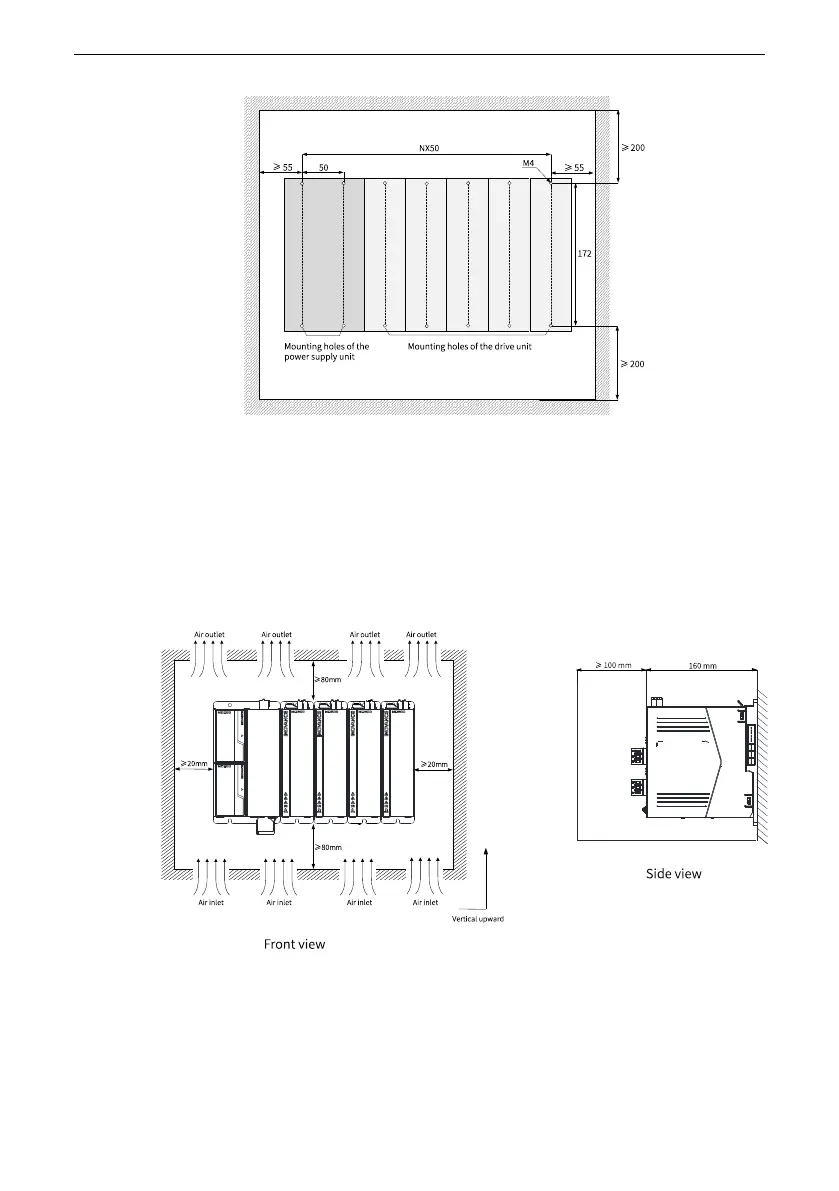

Figure 2‑5 Mounting hole dimensions (unit: mm)
2.3 Clearance Requirements
The recommended installation methods of MD800 include single rack installation and
multiple rack installation.
● When only a single unit is installed, the required reserved clearance around the
unit is shown in the following figure.
Figure 2‑6 Installation clearance (single unit)
● When multiple units are installed side by side, the minimum distance between two
units is 50 mm.

Inovance MD800 Series Specifications

General

Input Voltage	3-phase 380V AC ±15%
Output Voltage	0 to input voltage
Output Current	Depends on model
Power Range	0.75 kW to 500 kW
Control Mode	V/F control, vector control
Communication	Modbus
Protection	Overcurrent, overvoltage, undervoltage, overload, overheat
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m without derating
