Inovance SV820N Series - 6.5.4 Configuring the PDO Mapping for the Slave Station

- 123 -
6 Trial Running
6

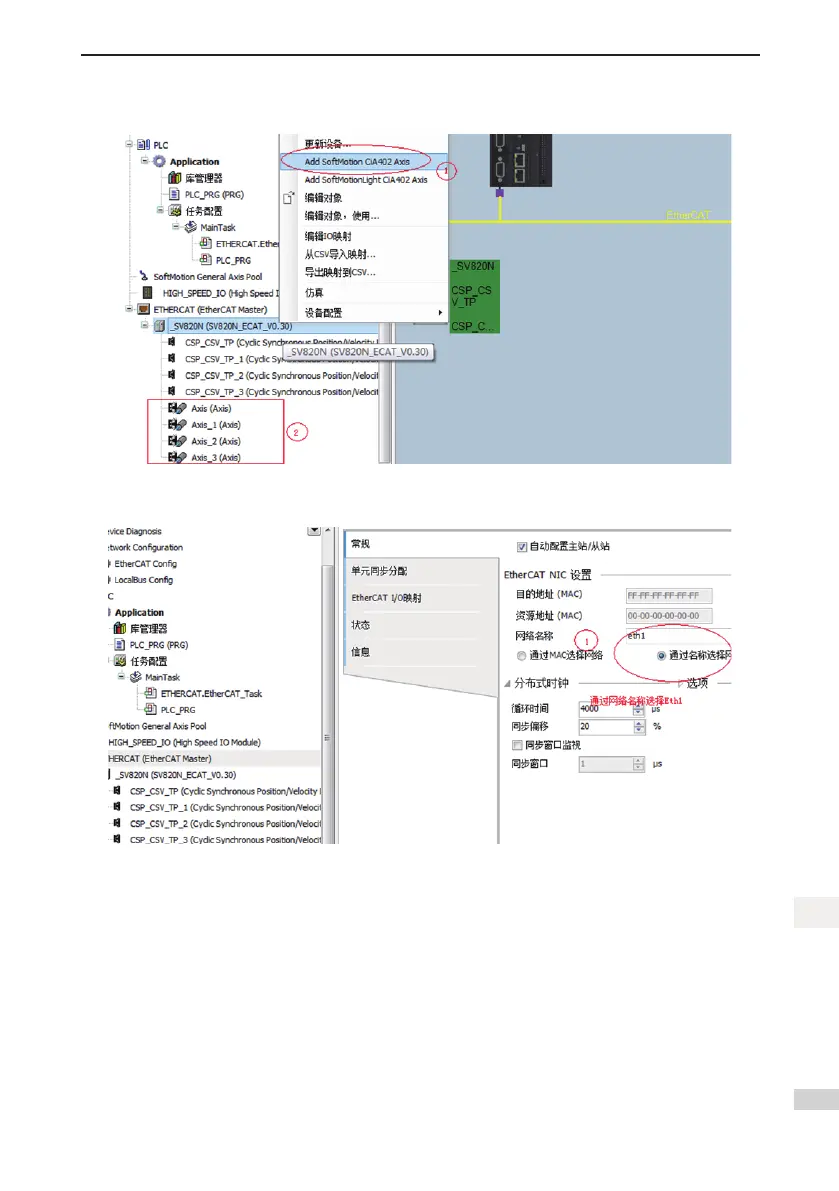

3. IfAM600backgroundislowerthanV1.10,pleasemanuallyadd4motorshafts.
Right-clicktheSV820Ndeviceoptiontoadd4rotatingmotorshafts.
4. ConguremasterstationcommunicationparametersforEtherCAT:Justusethedefaultvalue,andselect
eth1forthenetwork.
