6 Trial Running
6
6.6.2 CommnucationDataConguration
Motion control axis settings

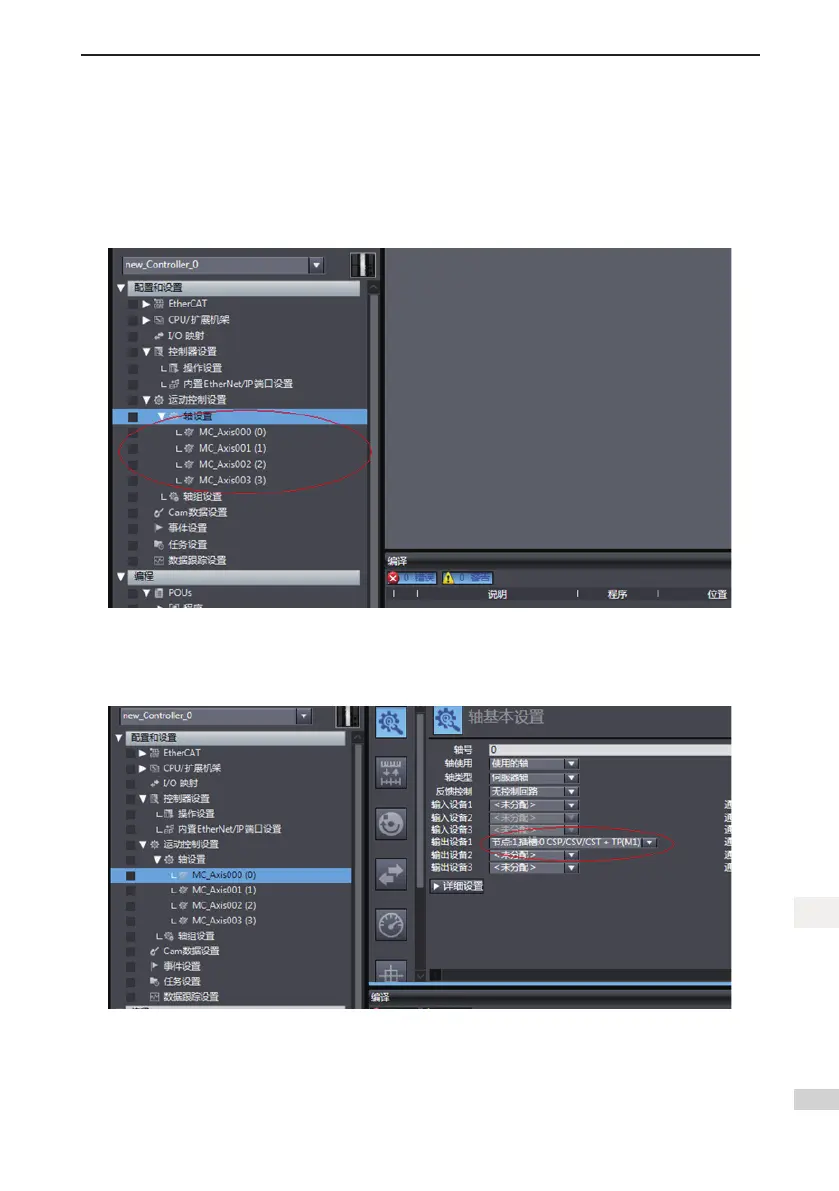

1. Addaxis settingsin motioncontrol. Double-click"MC_Axis000" asshown below.Then congurethe
SV820N device for the corresponding site in the related axis basic settings page. "MC_Axis000" can be
renamed (Chinese is applicable). For example, when named as "右放卷 (right unwinding)," then the use
of "右放卷" in NJ program indicates the control of the SV820N servo axis.
2. Performdetailedcongurationfortheaxisparameters:allfouraxesofeachslavestationneedtobecon-
guredwiththesamecongurationprocess.Ifthenumberofaxesislessthan4,setthevalueof0200of
theSV820servodriveto255toshieldtheaxis;fortheaxesinnormaluse,setthenormalconguration.
Thefollowingexampleshowshowtocongureoneoftheaxes.
