6 Trial Running
6
4. Set the EtherCAT communication site address through H0E-21 (currently available only for NJ, and
thereisnoneedtocongureBeckhoffTwincat).Poweronagainaftersetting.Foreasierconguration
management , it is recommended to set the address according to the actual physical connection order.

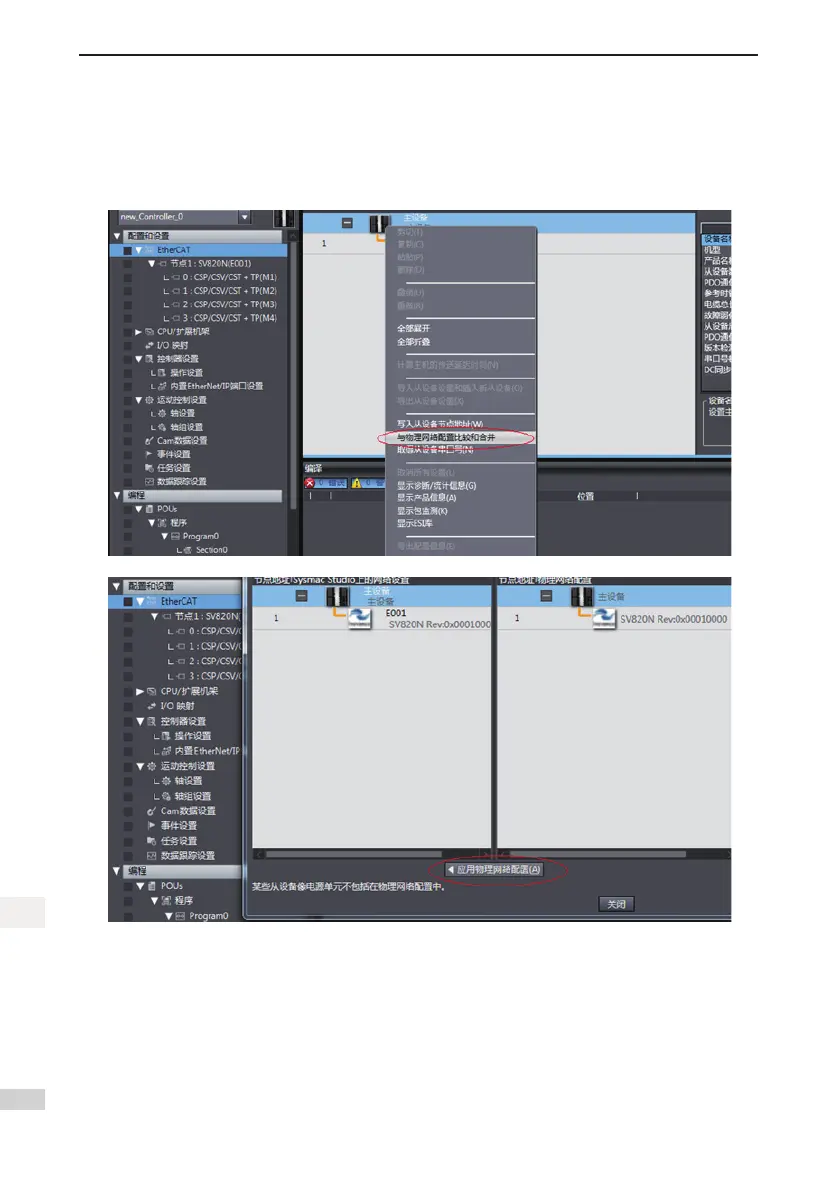

5. Setthemasterstationmodicationasonlinemode,andcompareandmergewiththephysicalnetwork
congurationinthemenubar.SettheactualphysicalnetworkcongurationtoSysmacsoftware’snet-
workconguration.
