6 Trial Running
6

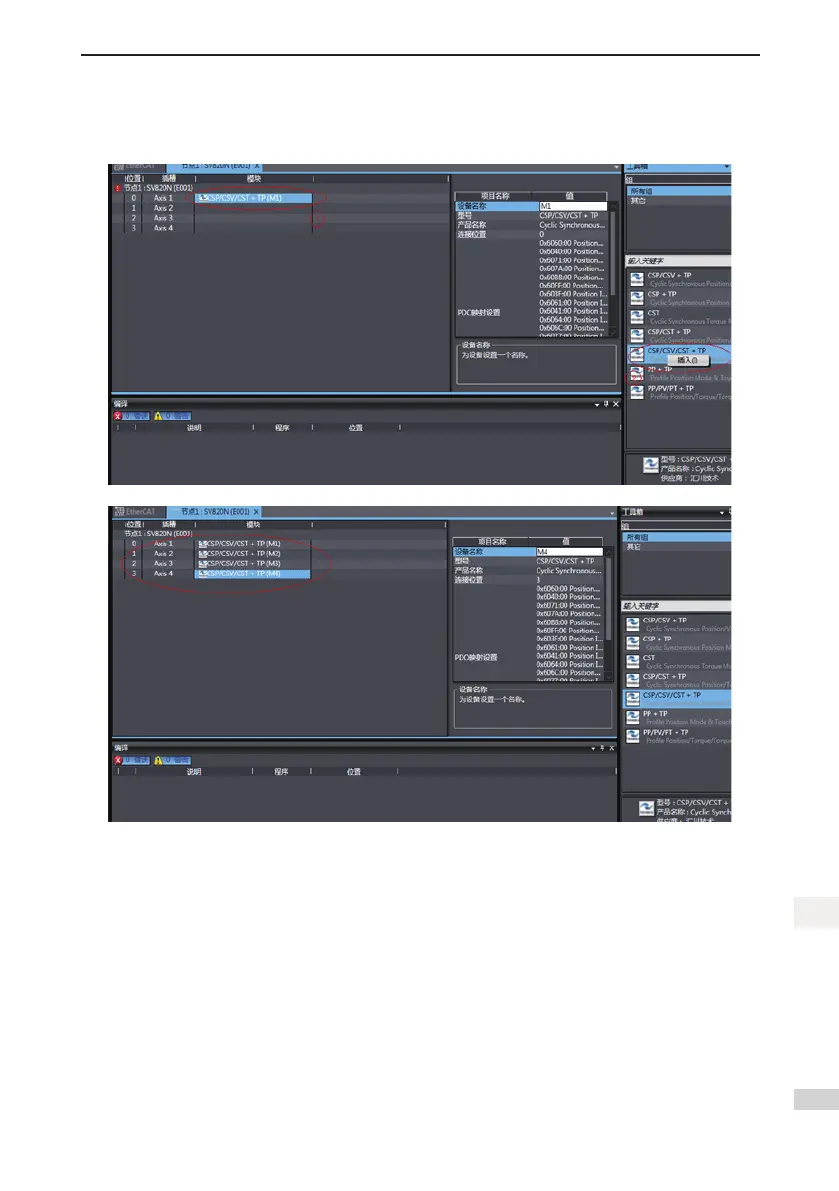

The SV820N is a 4-in-1 drive and plans the usability for the PDO list of each axis. Select the mode
youwanttorunfrom"CSP/CSV+TP,CSP+TP,CST,CSP/CST+TP,CSP/CST/CSV+TP,PP+TP,PP\PV\
PT+TP."Inconjunctionwiththecontroller,theXMLlewillselectthePDOlistneededbythecurrent
mode.Inthisexample,selectCSP/CST/CSV+TPmodeforallaxes.
