4 Operation Panel
4
Chapter 4 Operation Panel
4.1 Operation Panel Composition

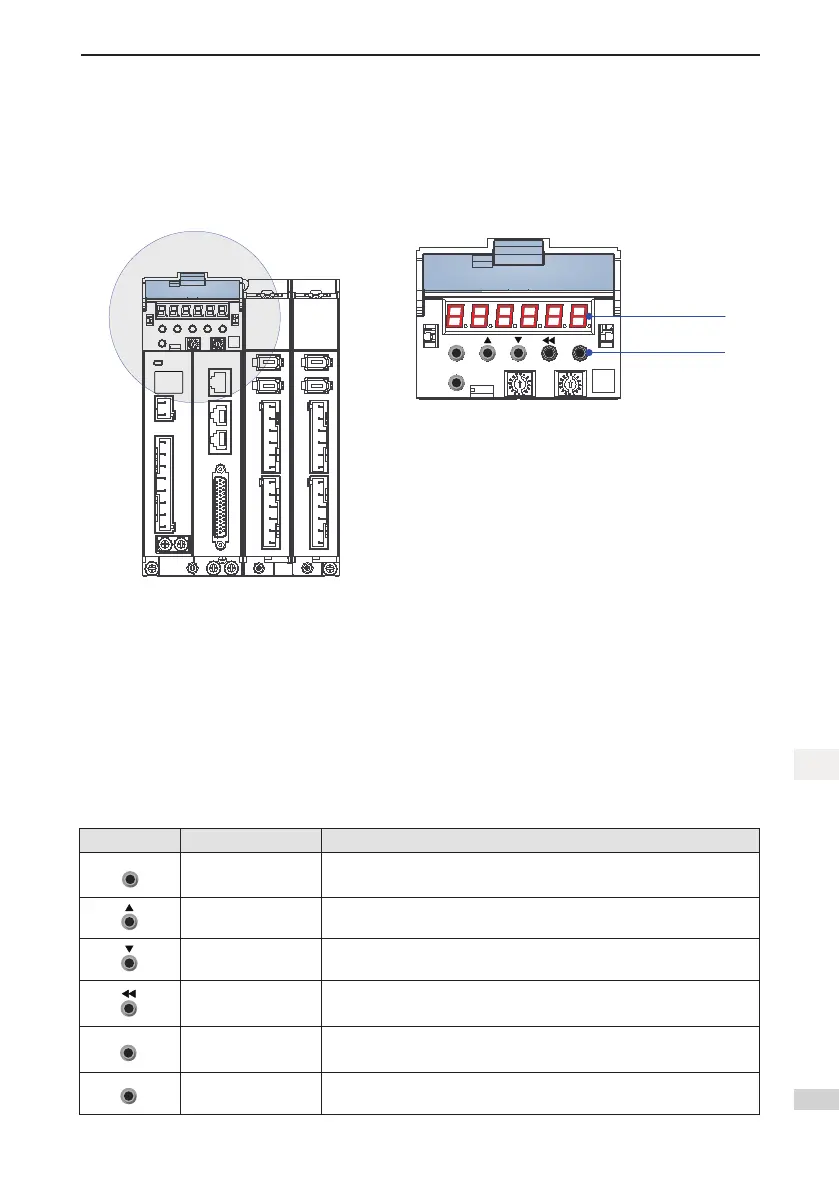

Figure 4-1 Appearance of the LED operation panel
LED display
area
Operation
buttons
MODE
SET
SEL
IDH IDL
The operation panel of the SV820N servo drive consists of an LED (6-digit, 7 segments) and 6 buttons. The
operation panel is used for the servo drive display, parameter setting, user password setting and general
functions operations. When the operation panel is used for parameter setting, the functions of the buttons
are described as follows.
LED display area
There are 6 digits on the LED. The LED displays common states, parameters and the axis number currently
operated.
Operation buttons
Table 4-1 Functions of buttons
Button Button Name Button Function
MODE
MODE
Switch between all modes.
Return to upper-level menu.
INCREMENT IncreasethevalueoftheblinkingdigitfortheLED.
DECREMENT DecreasethevalueoftheblinkingdigitfortheLED.
SHIFT
ShifttheblinkingdigitfortheLED.
View the high digits of the number consisting of more than 5 digits.
SET
SET
Switch to the lower-level menu.
Execute commands such as storing parameter setting value.
SEL
SEL
Selectspecicaxisnumberandoperatecorrespondingparametersof
current axis number.
