4 Operation Panel
4
4.3 Parameter Monitoring
GroupH0Boftheservodrive:Displaystheparametersformonitoringtherunningstatusoftheservodrive.

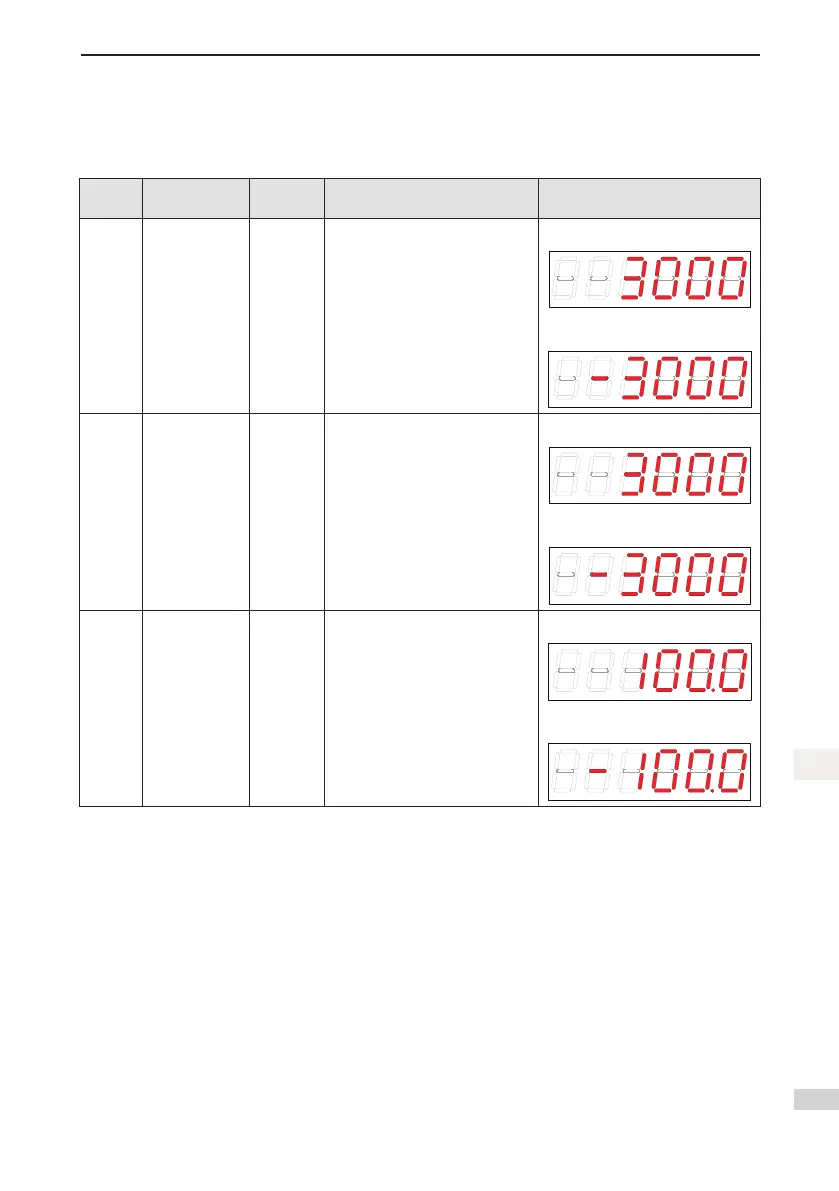

ThedisplayofH0Bmonitoringisdescribedasfollows:
Function
Code
Name Unit Meaning Display Examples
H0B-00
Actual motor
speed
RPM
The actual servo motor speed after
round-off is displayed, in unit of 1
RPM.
3,000RPMisdisplayedasfollows:
–3,000RPMisdisplayedasfollows:
H0B-01 Speed reference RPM
The current speed reference of the
servo drive is displayed.
3,000RPMisdisplayedasfollows:
–3,000RPMisdisplayedasfollows:
H0B-02
Internal torque
reference
0.1%
It is the percentage of the actual
servo motor output torque to the
rated motor torque.
100.0%isdisplayedasfollows:
–100.0%isdisplayedasfollows:
