4 Operation Panel
4

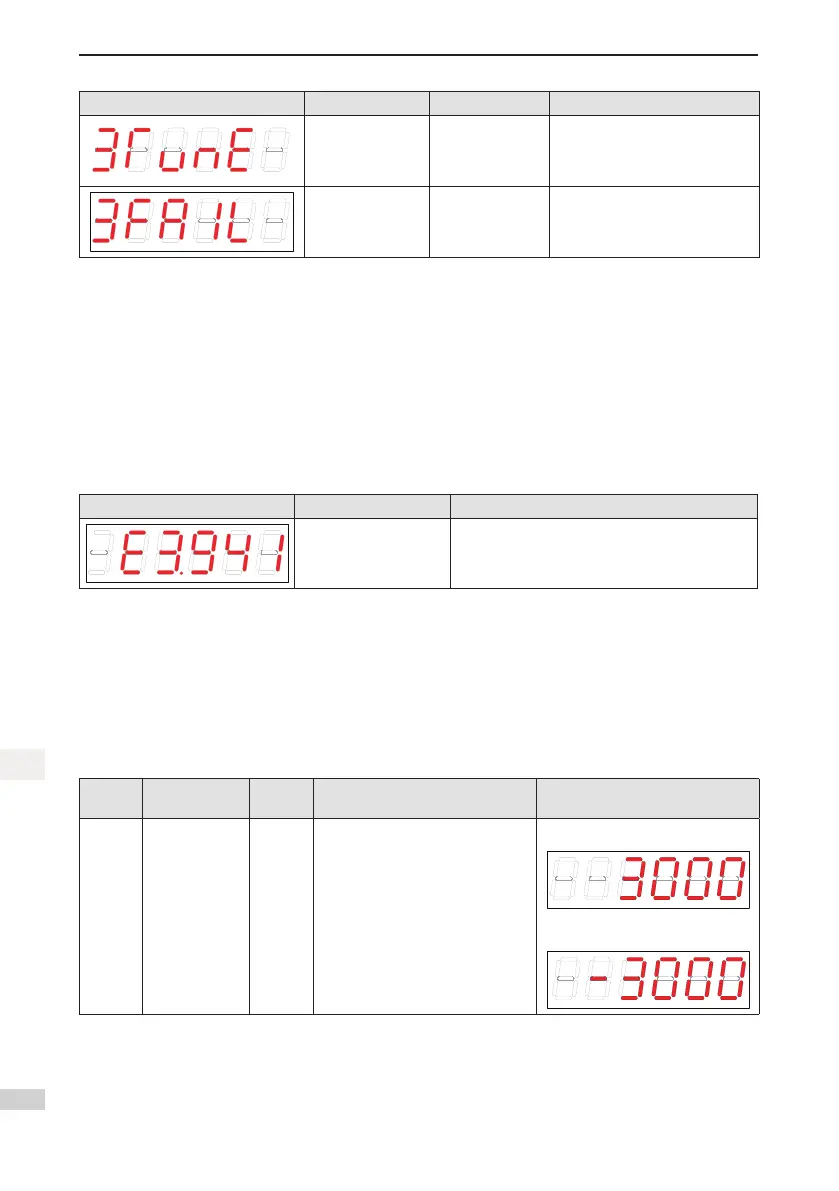

Display Name Situation Meaning
TunE
UseOne-key
Self-adjustment
function.
One-keySelf-adjustmentisin
progress.
FAIL
UseOne-key
Self-adjustment
function.
One-keySelf-adjustmenthas
failed.
Fault display (taking the current operation axis 3 as an example)
● Thekeypaddisplaysthecurrent or history faults and warning codes. For analysis andrecticationof
faults and warnings, refer to Chapter 5.
● Whenasinglefaultorwarningoccurs,thekeypaddisplaysthefaultorwarning code. When multiple
faultsorwarningsoccur,thekeypaddisplaysthefaultcodeofthehighestlevel.
● Set the number of history faults that can be viewed in H0B-33. View H0B-34 to display the selected fault
or warning codes.
● Set H02-31=2 to clear information about the latest ten faults or warnings stored in the servo drive.
Forexample,faultE3.941isdisplayedasfollows:
Display Name Content
Current warning code
E3.:Faultorwarningintheservodrive
941:Warningcode
Monitoring display
GroupH0Boftheservodrive:Displaystheparametersformonitoringtherunningstatusoftheservodrive.
SetH02-32 (Default keypaddisplay).After theservo motorruns properly,thekeypad switches overfrom
"servo status display mode" to "parameter display mode". The function code group number for the parameter
is H0B, and the offset is the setting value of H02-32.
Forexample,ifH02-32=00,thekeypaddisplaysthecorrespondingparametervalueofH0B-00iftheservo
motor speed is not 0.
Function
Code
Name Unit Meaning Display Examples
H0B-00
Actual motor
speed
RPM
The actual servo motor speed after
round-off is displayed, in unit of 1
RPM.
3,000RPMisdisplayedasfollows:
–3,000RPMisdisplayedasfollows:
