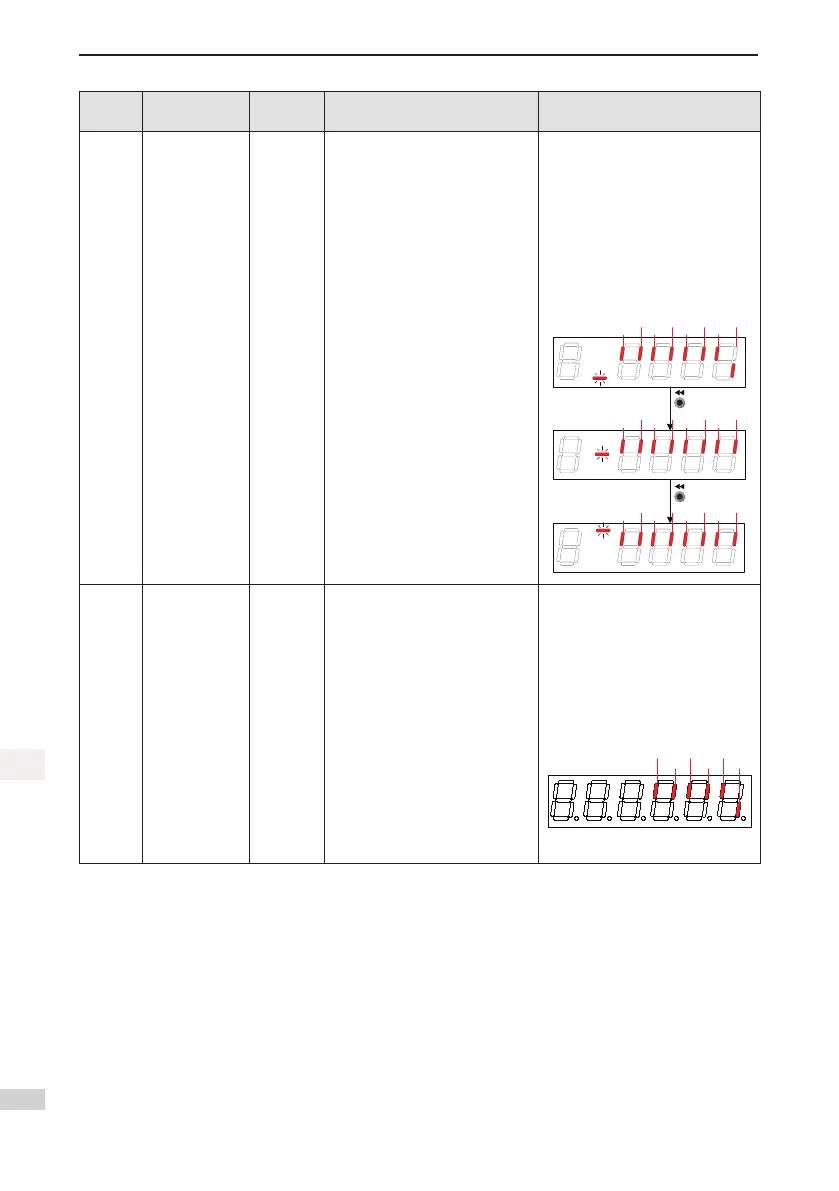

4 Operation Panel
4
Function
Code
Name Unit Meaning Display Examples
H0B-03
Input signal
(DI signal)
monitoring
-
It indicates the corresponding
optocoupler status of 24 DI
terminals:
The upper LED segment ON
indicatestheoptocouplerisOFF:
(Indicated with "1")
The lower LED segment ON
indicatestheoptocouplerisON:
(Indicated with "0")
H0B-03 value read by the
commissioning software is a
hexadecimal number.
For example, when the optocoupler
of terminal DI1 is
ON
and that of
DI2–DI24 is
OFF
:
The corresponding binary value is
"11111111 11111111 11111110"
The value of H0B-03 read by
the commissioning software is
0xFFFFFE.
Thekeypaddisplayisasfollows:
DI9
DI12
DI11
DI14
DI13DI15
DI10DI16
DI1
DI4
DI3
DI6
DI5DI7
DI2DI8
DI17
DI20
DI19
DI22
DI21DI23
DI18DI24
H0B-05
Output signal
(DO signal)
monitoring
-
It indicates the corresponding
optocoupler status of 6 DO
terminals:
The upper LED segment ON
indicatestheoptocouplerisOFF:
(Indicated with "1")
The lower LED segment ON
indicatestheoptocouplerisON:
(Indicated with "0")
H0B-05 value read by the
commissioning software is a
hexadecimal number.
For example, when optocoupler
of terminal DO1 is
ON
and that of
terminal DO2–DO6 is
OFF
:
The corresponding binary value is
"111110";
The value of H0B-05 read by the
commissioning software is 0x3E.
Thekeypaddisplayisasfollows:
DO3 DO1
DO2
Low
0
High
1
High
1
DO5
DO4DO6
High
1
High
1
High
1
