Inovance SV820N Series - Page 76

- 75 -
4 Operation Panel
4
Function
Code

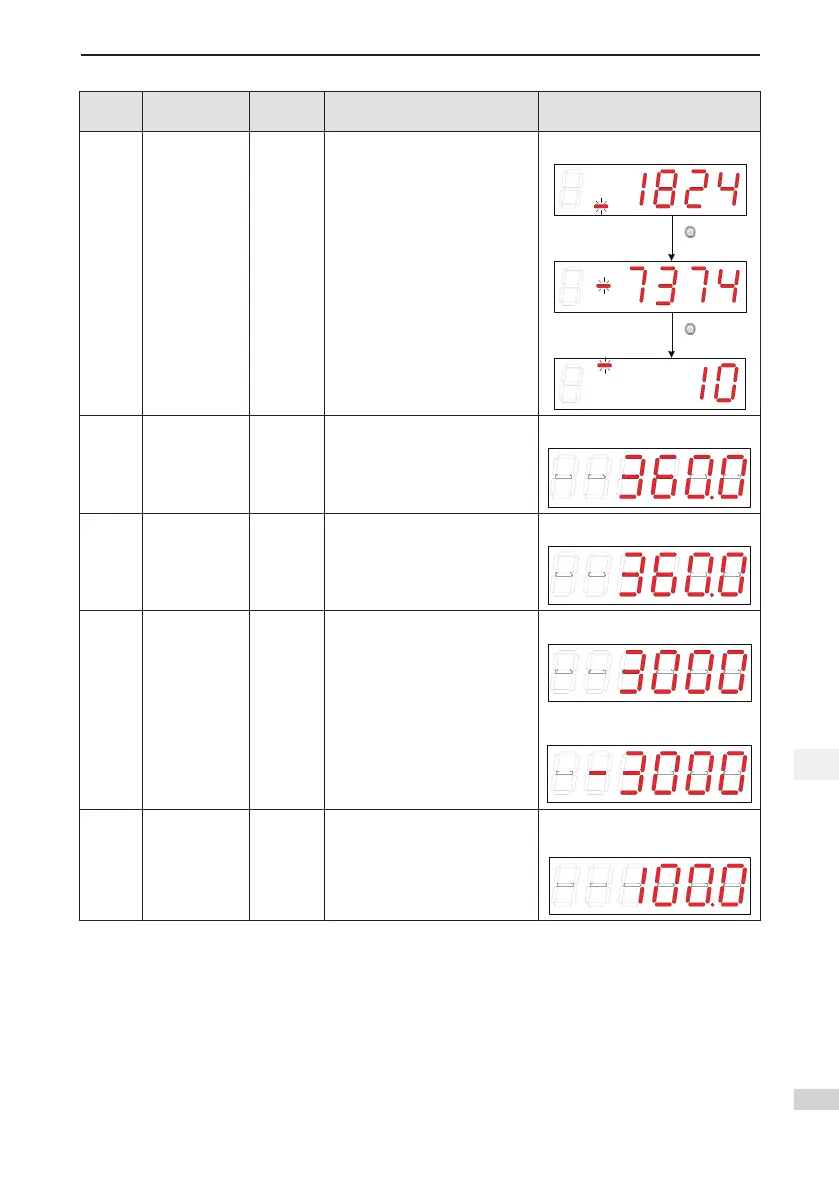

Name Unit Meaning Display Examples
H0B-07
Absolute
position counter
(32-bit decimal
display)
Reference
unit
It indicates the current absolute
position of the motor (reference
unit).
1073741824referentunitsdisplay:
SHIFT
SHIFT
H0B-09
Mechanical
angle
0.1°
It indicates the current mechanical
angle of the motor.
360.0°isdisplayedasfollows:
H0B-10
Rotation angle
(electric angle)
0.1°
It indicates the current electric
angle of the motor.
360.0°isdisplayedasfollows:
H0B-11
Speed
corresponding
to input position
reference
RPM
It indicates the servo drive speed
corresponding to the position
reference in a single control period.
3,000RPMisdisplayedasfollows:
–3,000RPMisdisplayedasfollows:
H0B-12
Average load
ratio
0.1%
It indicates the percentage of the
average load torque to the rated
motor torque.
Thekeypaddisplayof100.0%isas
follows:
