Cooling
Makesuretheinstallationdirectionoftheservodriveisverticaltothewall.Cooltheservodrivewithnatural
convection or a cooling fan.
Asshownintheabovegure,keepsufcientspacearoundthedriveunittoensurecoolingbyfansornatural
convection. Install the cooling fans above the servo drive to avoid an excessive temperature rise and main-
tain an even temperature inside the control cabinet.
Ground
Thegroundingterminalmustbeproperlygrounded.Failuretocomplymaycauseelectricshockormalfunc-
tion due to interference.
Cable routing requirements
Whencablingtheservodrive,routethecablesdownward(refertothegurebelow)topreventliquidonthe
sitefromowingintotheservodrivealongcables.

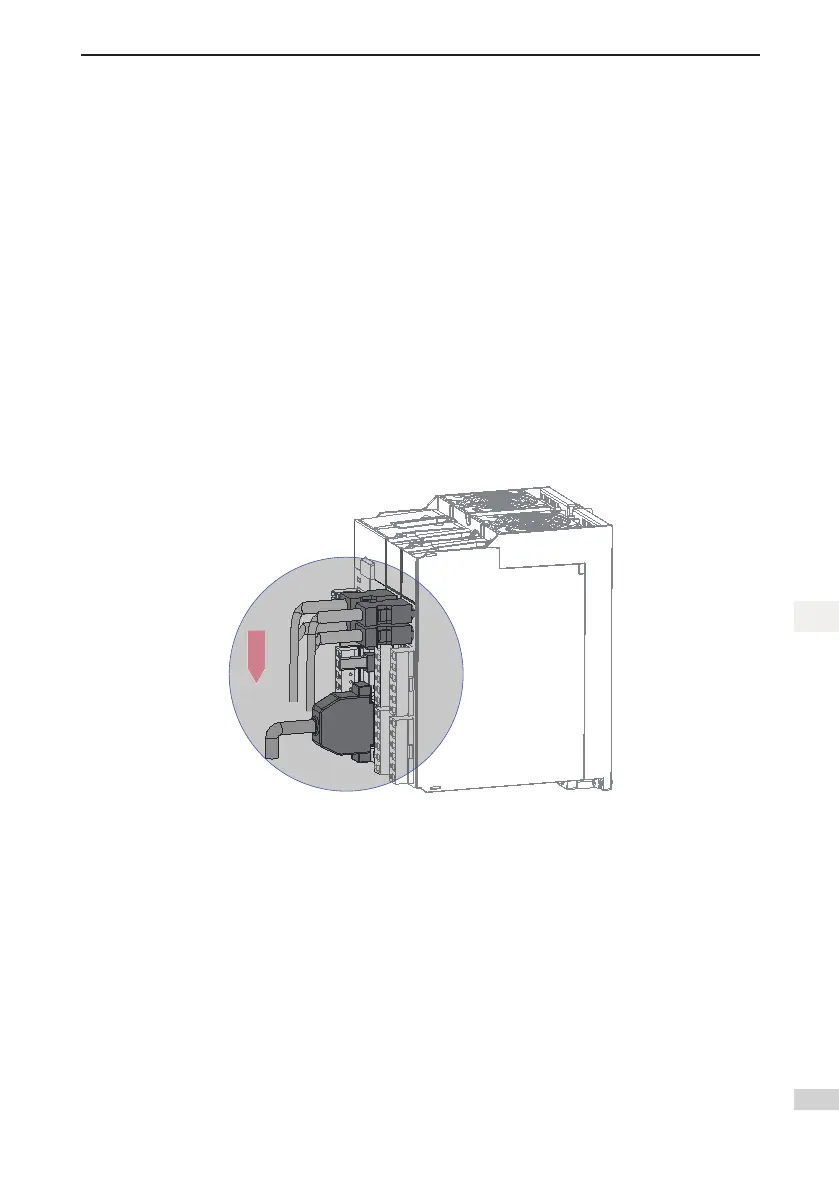

Figure 2-6 Cable routing diagram
