Chapter: Requirements and Specifications
2-16 M10-16248-EN

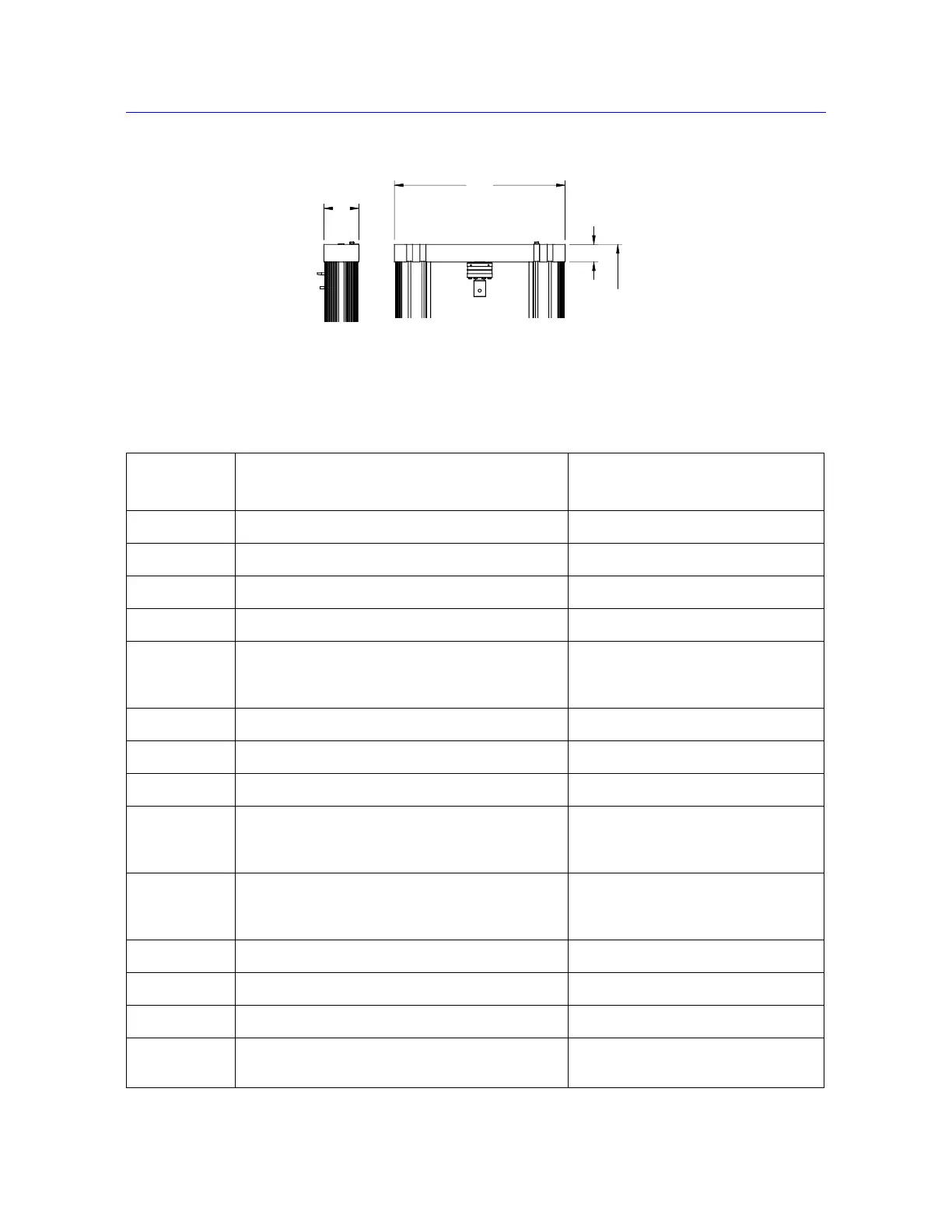

Figure 2-4. Second Test Space Dimensions
Table 2-8. 5960 Second Test Space Configuration Dimensions
Letter
Designation Description Dimension mm (inch)
A Across columns 729 (28.7)
B Column depth 140 (5.5)
C Horizontal test daylight 418 (16.5)
D Fixed crosshead thickness 75 (2.9)
E Moving crosshead thickness
5965/5966
5967/5969
76 (3.0)
120 (4.7)
F Space required to open controller door 148 (5.8)
G Base beam height from table 190 (7.5)
H Gap for feet - nominal setting 25 (1.0)
J1 Crosshead position (First test space)
Minimum
Maximum
192 (7.5)
1332 (52.4)
J2 Crosshead position (Second test space)
Minimum
Maximum
128 (5.0)
1256 (44.5)
K Overall depth 725 (28.5)
L Front of base to test center 265 (10.4)
M Motor cover height 403 (15.9)
N Overall height - standard height
Overall height - extra height
1657 (65.2)
2182 (85.9)
