Instron 5960 Series User Manual

Chapter: Requirements and Specifications
2-22 M10-16248-EN
Top Plate
Figure 2-8 on page 2-22 shows the top plate dimensions for both standard and extra wide
models.
Table 2-14. Fixed Crosshead Mounting Dimensions
Label Dimension
A (10 holes) M10 x 25 deep
B (1 hole) Ø40 x 3 deep
C (1 hole) Ø17.5 thru
E (2 holes) Ø10 x 6 deep
The top plate is not a load bearing component of the machine.

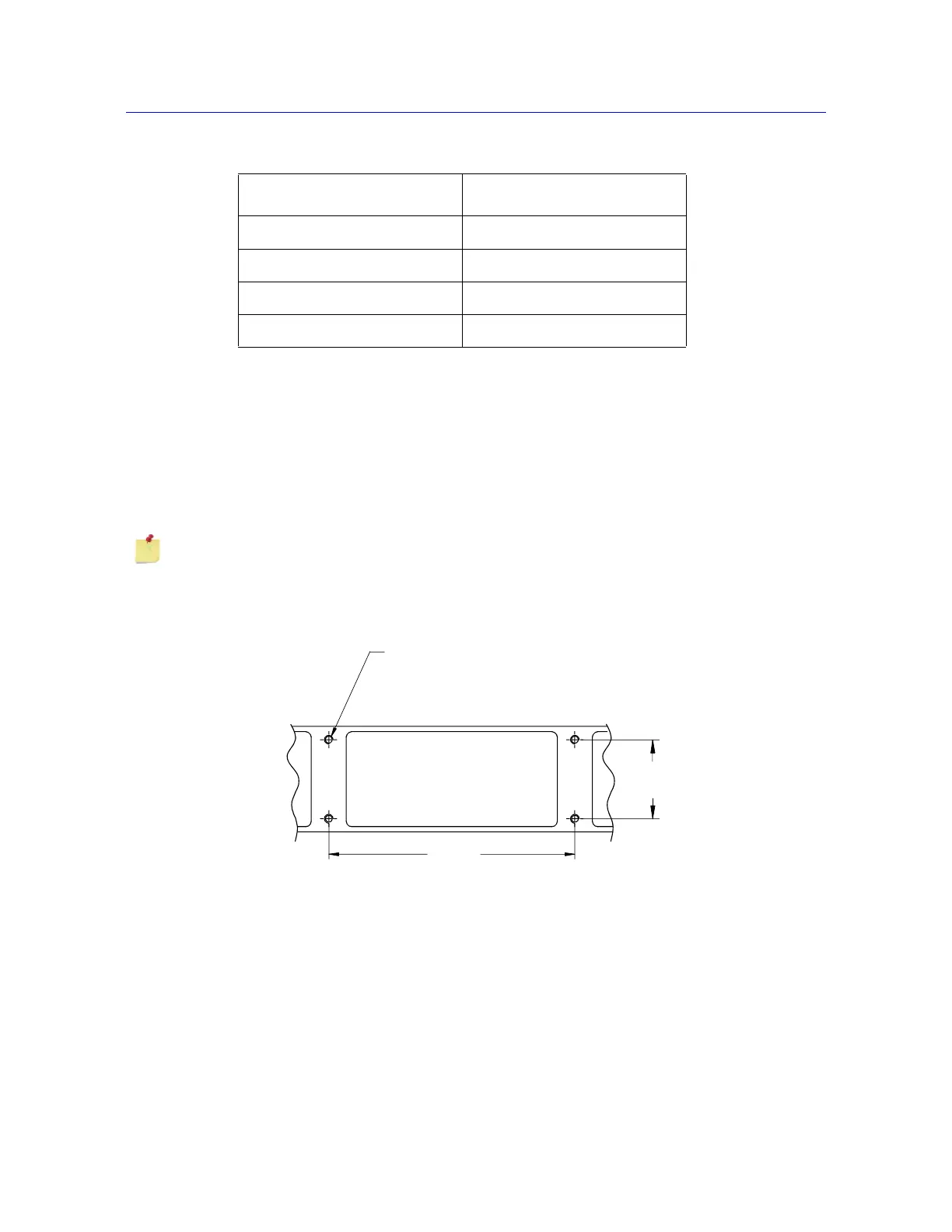

Figure 2-8. Top Plate Mounting Dimensions
280
90
A
