Instron 5960 Series User Manual

2-21
Accessory Mounting Dimensions
Product Support: www.instron.com
D (1 hole) Ø30.5 x 21 deep
E (2 holes) Ø10 x 6 deep
Table 2-13. Moving Crosshead Mounting Dimensions
Label Dimension

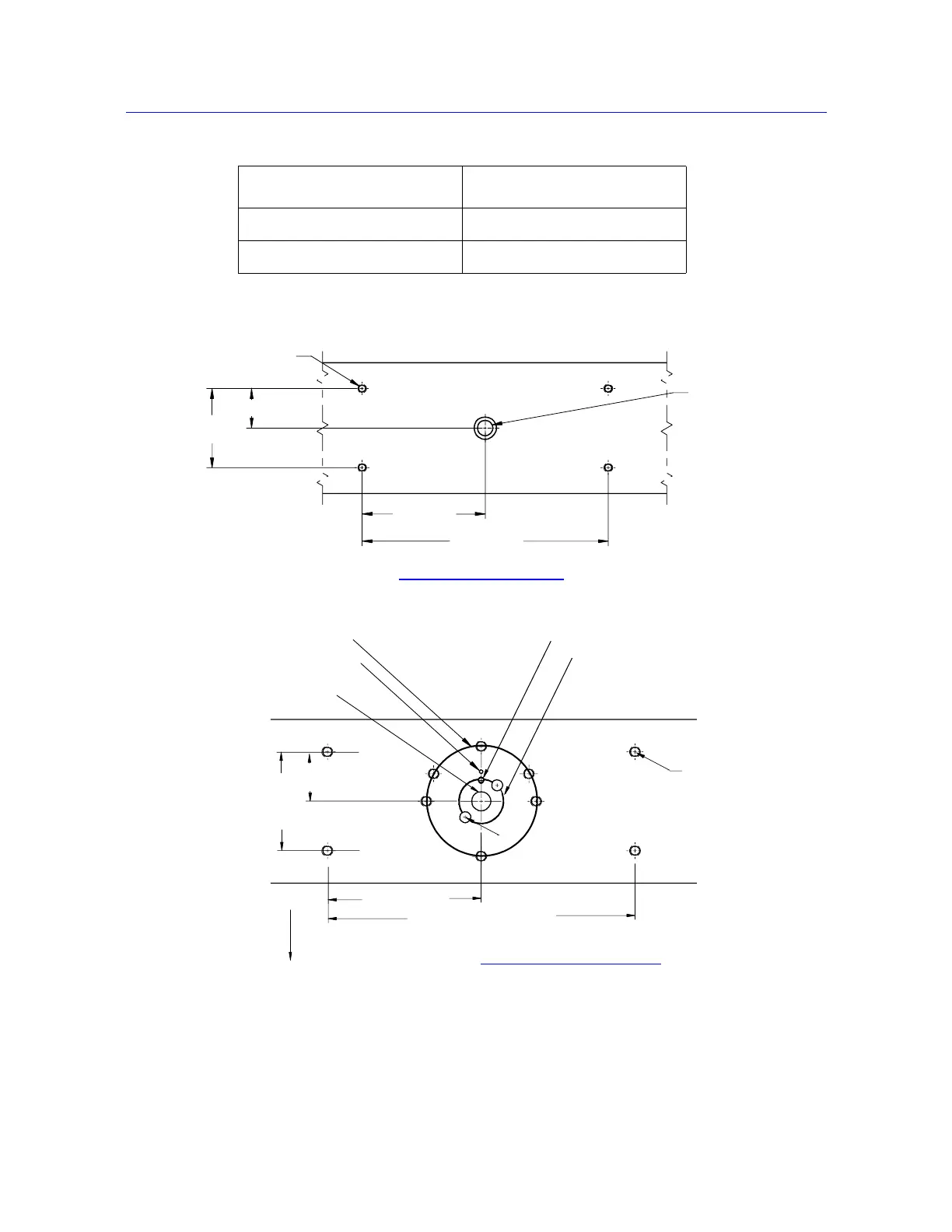

Figure 2-7. Fixed Crosshead Mounting Dimensions
Topside of fixed crosshead
90
45
140
280
C
A
Underside of fixed crosshead
Ø100
Front of frame
90
45
140
280
C
B
A
Ø5 x 9.0 Deep
Ø3 x 5.5 Deep
E
