Chapter: Requirements and Specifications
2-20 M10-16248-EN
Crosshead
Figure 2-6 on page 2-20 and Table 2-13 on page 2-20 show the accessory mounting
dimensions on the moving crosshead for both standard and extra wide models. If your
machine has the second test space option, refer to Figure 2-7 on page 2-21 for the
accessory mounting dimensions on the fixed crosshead.

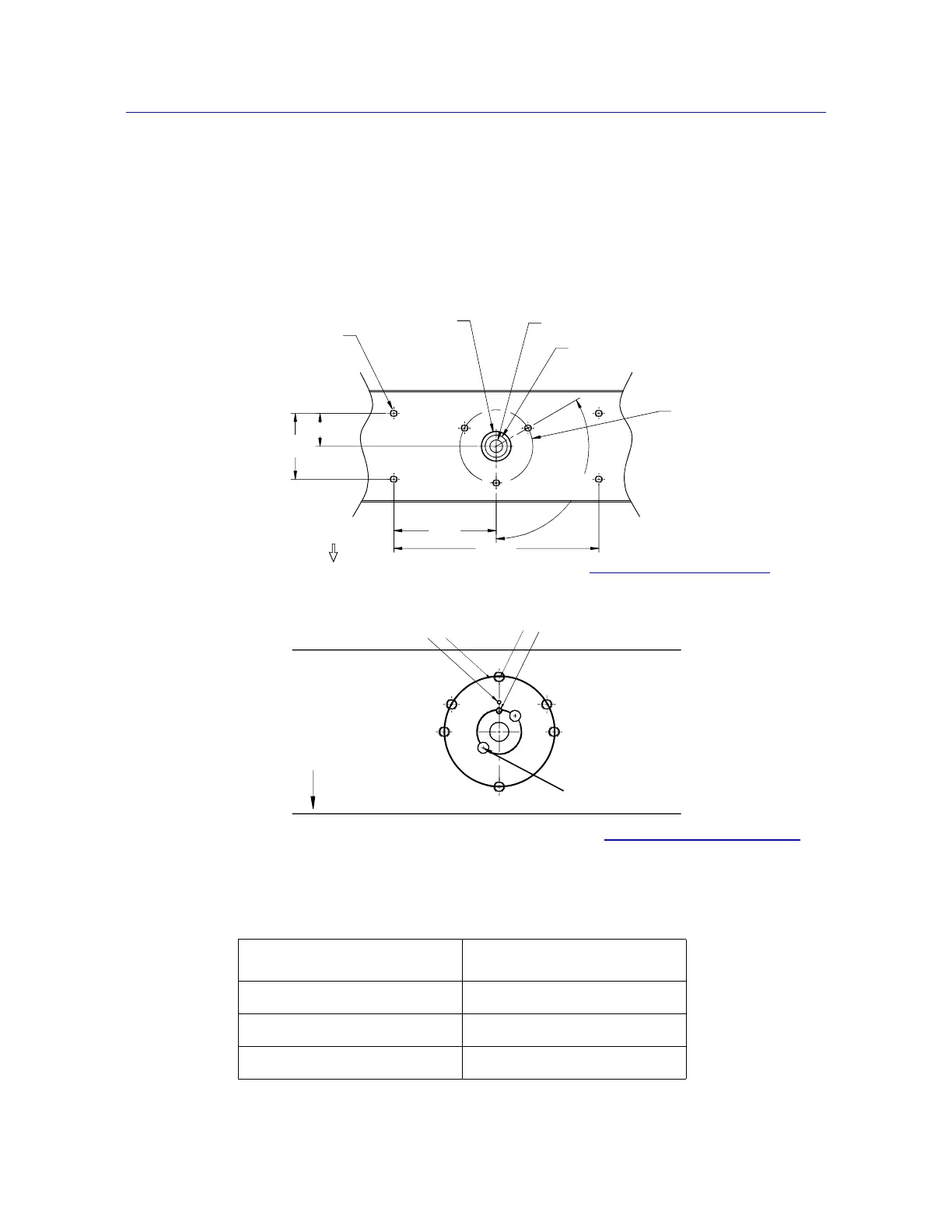

Figure 2-6. Moving Crosshead Mounting Dimensions
A
Ø100
Front of frame
45
90
140
280
120°
B
C
D
A
Underside of moving crosshead
Topside of moving crosshead
Front of frame
Ø3 x 5.5 Deep
Ø5 x 9.0 Deep
Ø100
E
Table 2-13. Moving Crosshead Mounting Dimensions
Label Dimension
A (13 holes) M10 x 25 deep
B (1 hole) Ø40 x 3 deep
C (1 hole) Ø17.5 thru
