Instron 5960 Series User Manual

2-15
Series 5960 Dimensions
Product Support: www.instron.com
Second Test Space Configuration
The second test space option lets you test in the space above the moving crosshead, as
shown in Figure 2-3 on page 2-15.
In this configuration, the top plate is replaced with a fixed crosshead. Holes are drilled in the
fixed crosshead to mount the load cell or grip adapter. The specimen is gripped between the
fixed crosshead and the top of the moving crosshead.
Table 2-7. 5967 Extra Wide & Extra Height Frame Dimensions
Designation Description Dimension - mm (inch)
G Base beam height from table 230 (9.1)
J1 Crosshead position
Minimum
Maximum
67 (2.63)
1656 (65.2)
N Overall height 2120 (8352)
P Overall width 1278 (50.3)

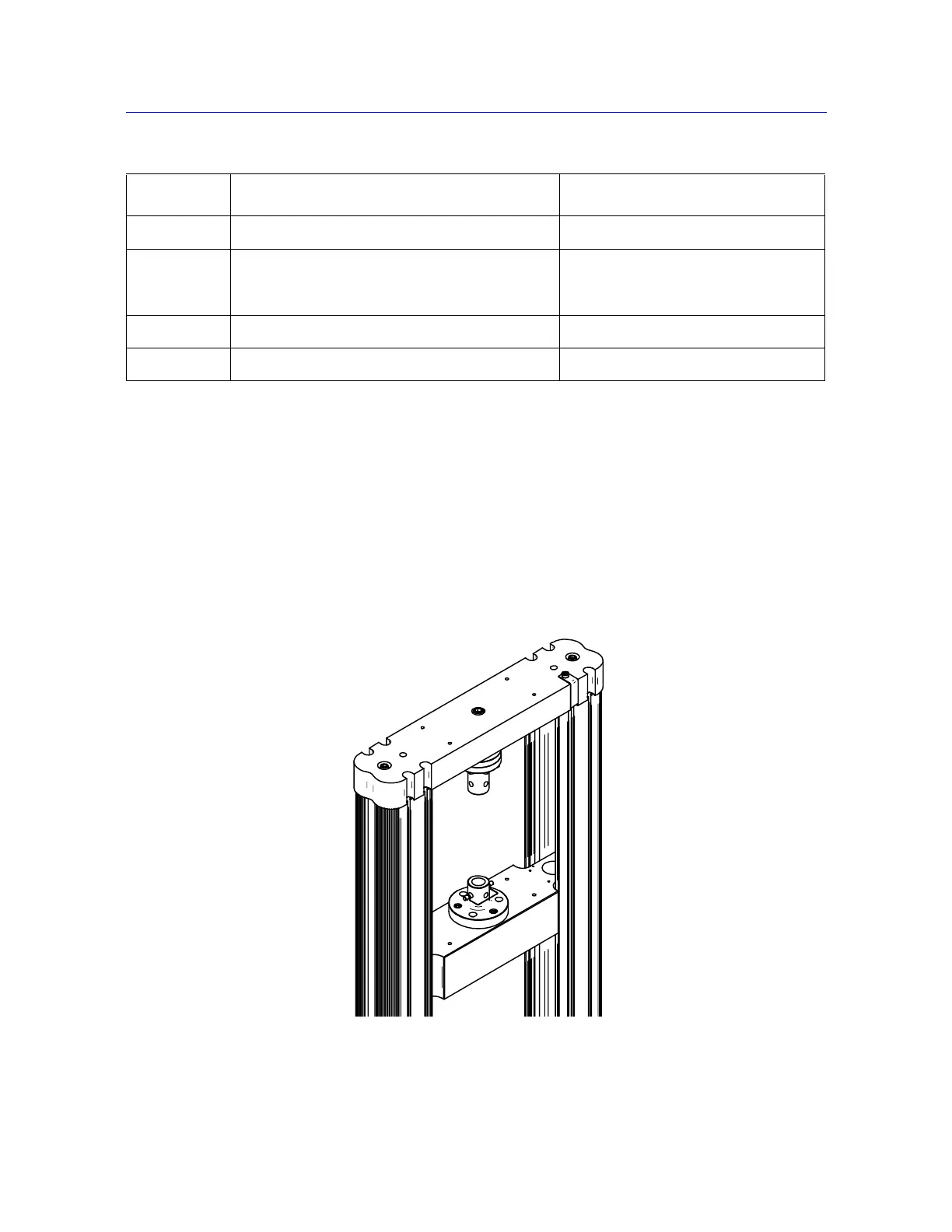

Figure 2-3. Second Test Space Configuration
