Chapter 3: Operation
48 M47-17027-EN

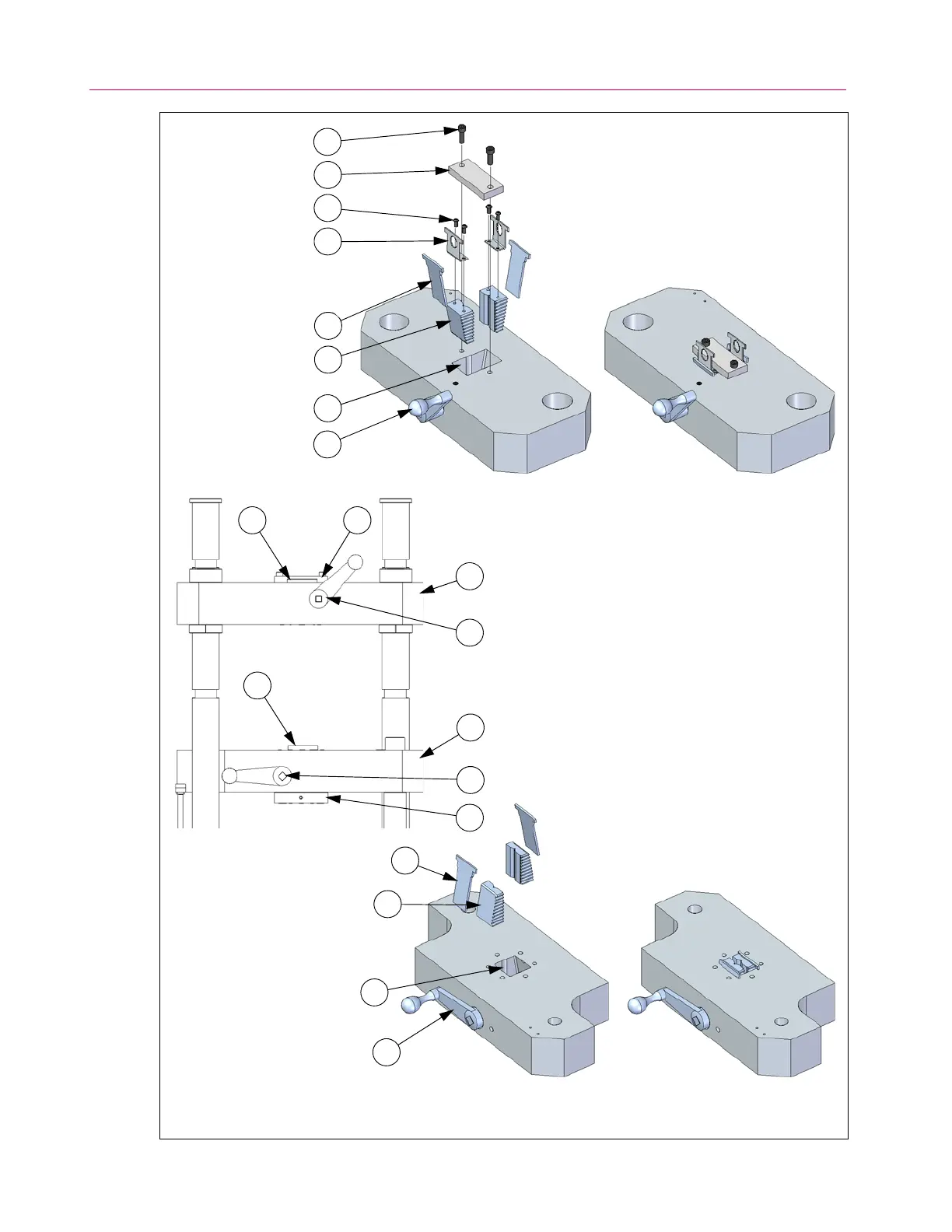

Figure 10. Components of the grip assemblies for G1-style crossheads.
1. Tension crosshead
2. Crank handle and pinion
3. Adjustable crosshead
4. Grip pocket
5. Grip stop plate
6. Socket head cap screw
(see Table 11 for size and quantity)
7. Jaw r e tain e r
8. Button head cap screw
(see Table 11 for size and quantity)
9. Filler plate
10. Grip jaw
11. Bumper plate
View A
Tension Crosshead
Exploded View
Assembled View
View B
Adjustable Crosshead
Exploded View Assembled View
6
5
8
7
9
10
4
2
9 5
9
3
2
1
2
11
9
10
4
2
