CombiLock 200 simplex / pro / RFID
Handbuch V.1.05 68 Manual V. 1.05

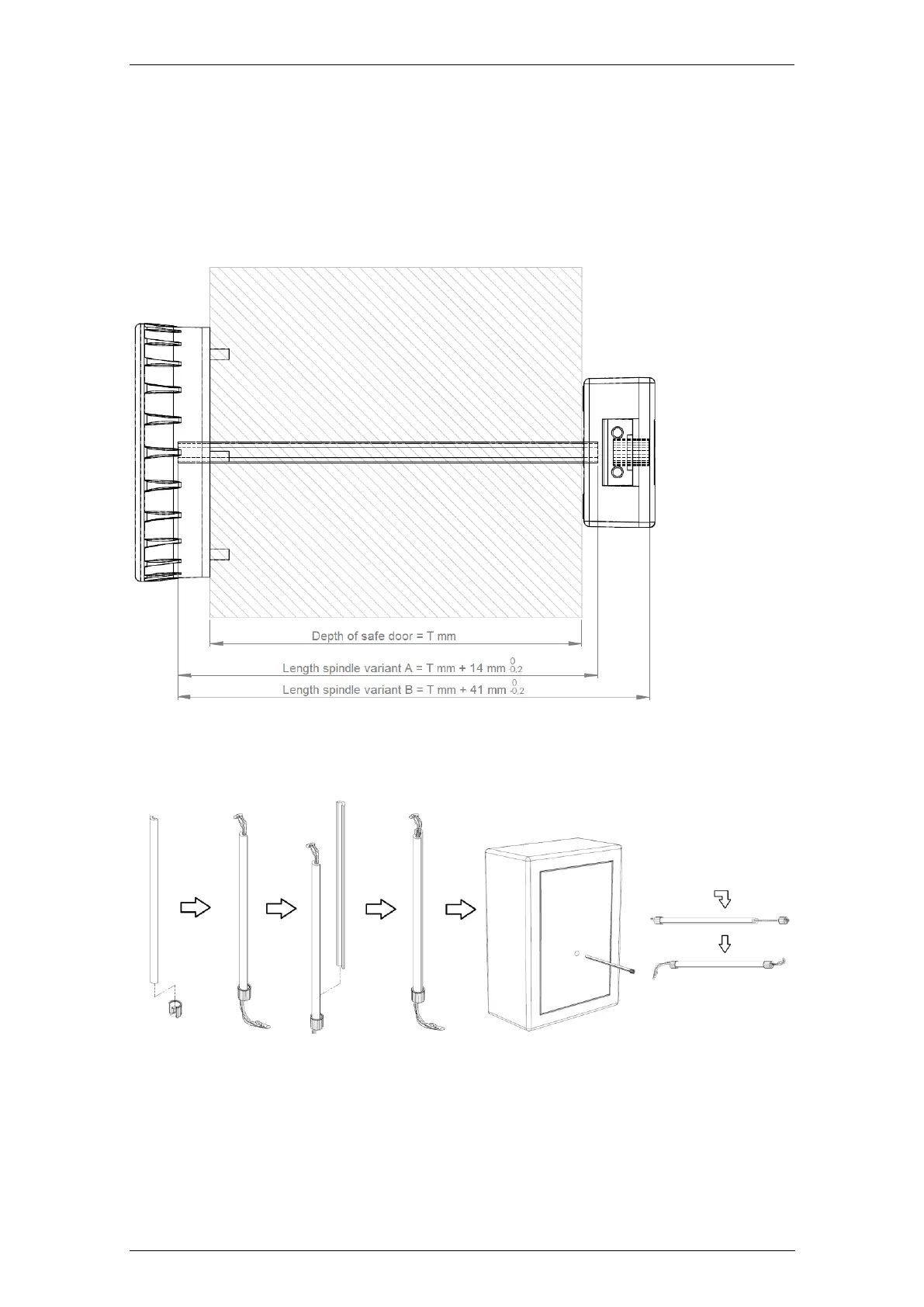

7.2.2 Shortening and Assembling the Spindle A
Shorten the spindle to a length at least as long as the safe door is deep (depth safe
door = T mm) + connecting length in lock and operating unit (in all 14 mm with
variant A; spindle length = T mm + 14 mm, see the drawing below).
Shorten the spindle variant A to that length.
Lead the wires through the inside of the spindle that you assemble from the half
pipes and lead them through the 1
st
cuff (steps A, B, C, D).
A B C D E F
Lead the pre-formed spindle through the bore drilled into the safe door (step E).
Finally attach the 2
nd
cuff (step F).
