CombiLock 200 simplex / pro / RFID
Handbuch V. 1.05 81 Manual V.1.05

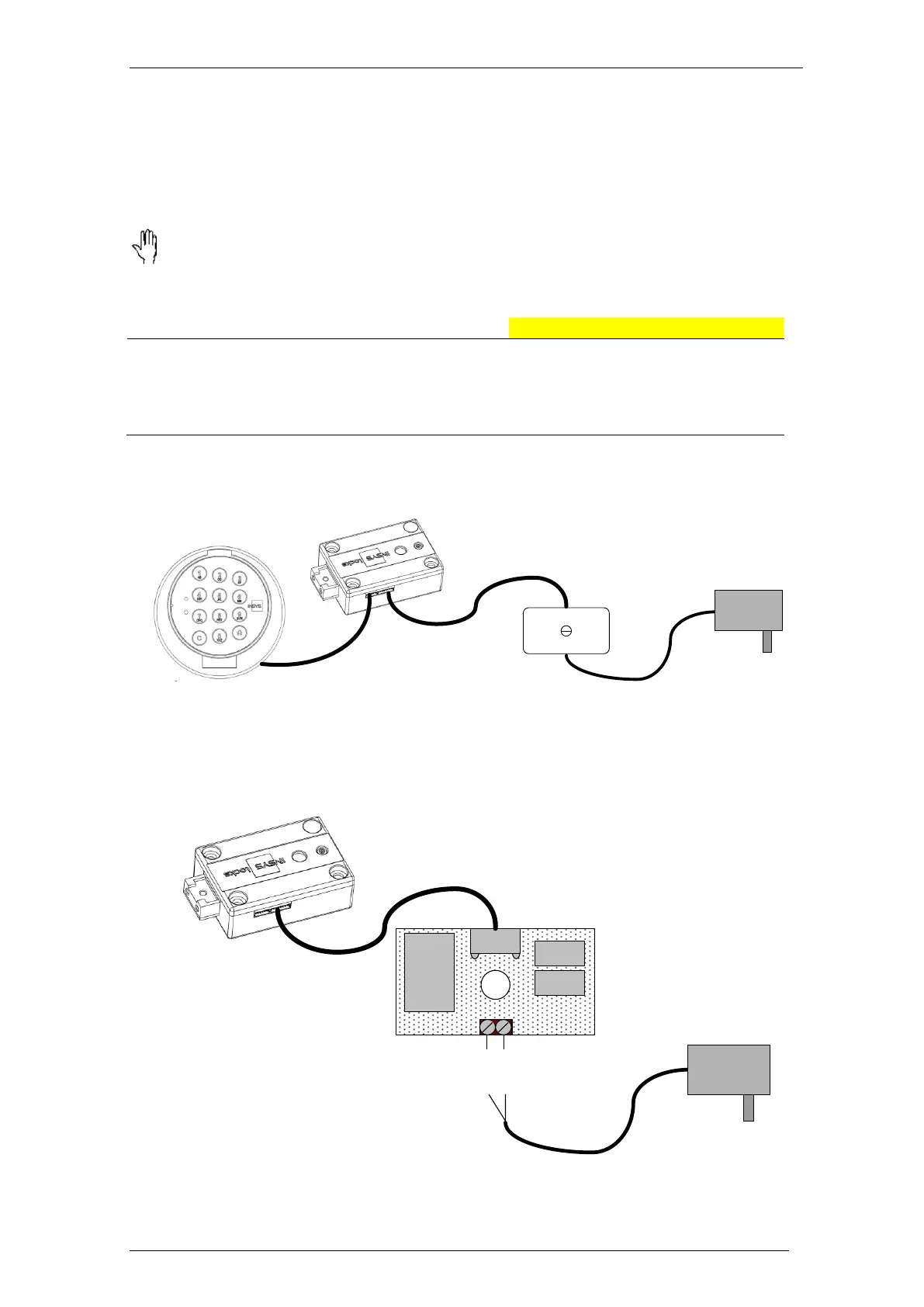

7.5 Survey Installation CombiLock 200 RFID
The blocking element PowerXT is optional and not included in the scope of the
standard delivery.
Only skilled electricians, which have been trained and entitled by INSYS or
approved partner companies, may perform assembly jobs.
Caution
Danger of short circuit of electric components.
Danger of damage to the system.
Perform jobs on hardware components like illustrated.
Unauthorised retrofitting and modifications are forbidden.
Operating Unit
CombiControl RFID
Lock
INSYS Lock 200 RFID
Extension unit
PowerXT
Power adapter 9VDC /
500 mA, regulated
9VDC GND
Lock
+ -
6-pole Adapter Cable
