CombiLock 200 simplex / pro / RFID
Handbuch V. 1.05 73 Manual V.1.05
7.4 Installation with Blocking Device
The blocking element CombiXT is optional and not included in the scope of
delivery.

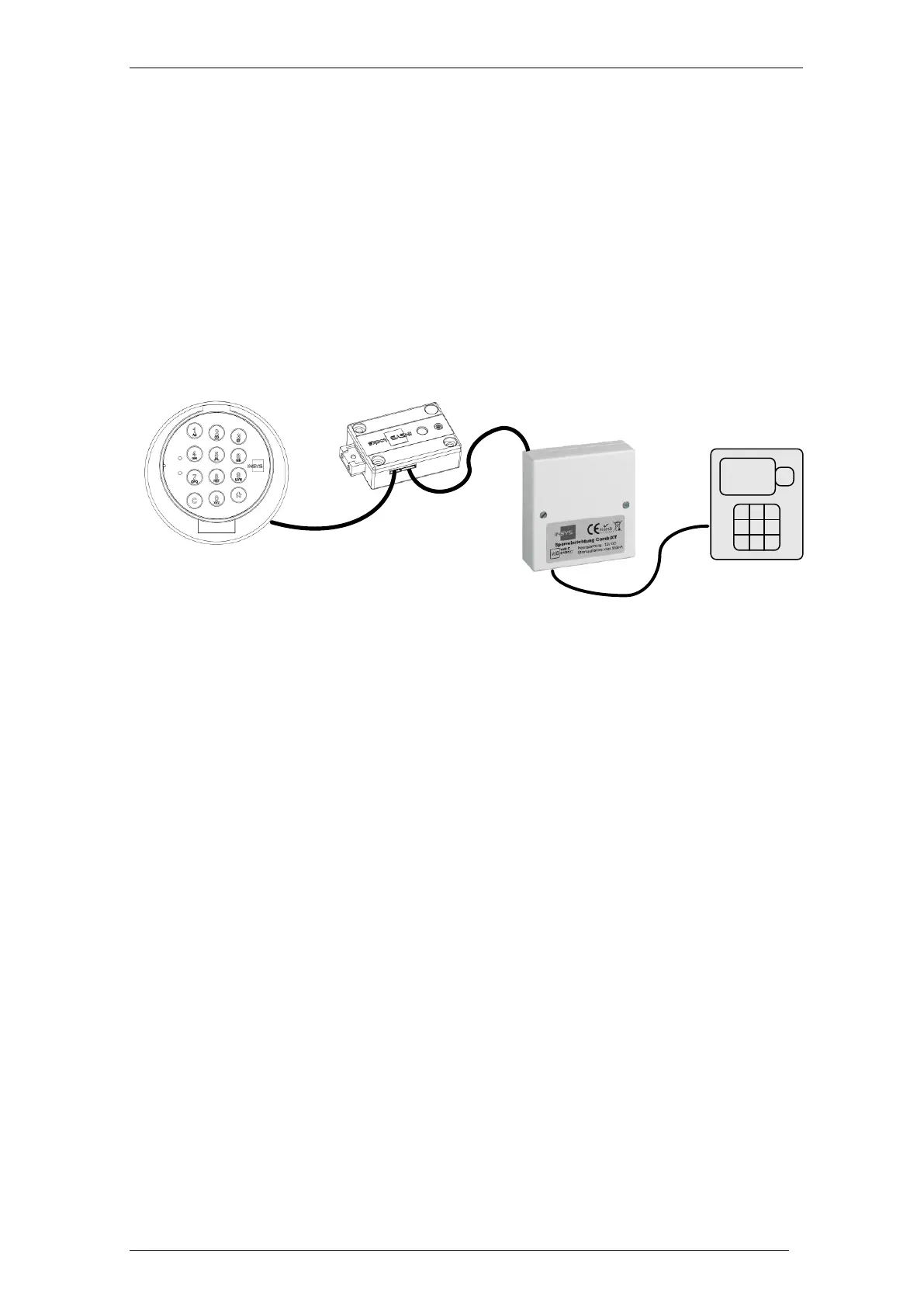

System Overview with Blocking Device CombiXT
Installation Procedure for mounting CombiXT
Mounting of the blocking device CombiXT
(see chapter 3)
Connecting CombiXT to lock INSYS Lock 200 pro
(see chapter 4)
Connecting CombiXT to the burglar alarm system (BAS / IDS)
(see chapter 5)
Activating the blocking unit at the operating unit CombiControl
(see chapter 6)
Function test of the blocking unit
(see chapter 7)
BAS /
IDS
Operating unit
CombiControl
Lock
INSYS Lock 200 pro
Blocking element
CombiXT
Burglar alarm system /
Intrusion detection system
