7.4.1 Mounting the Blocking Device CombiXT

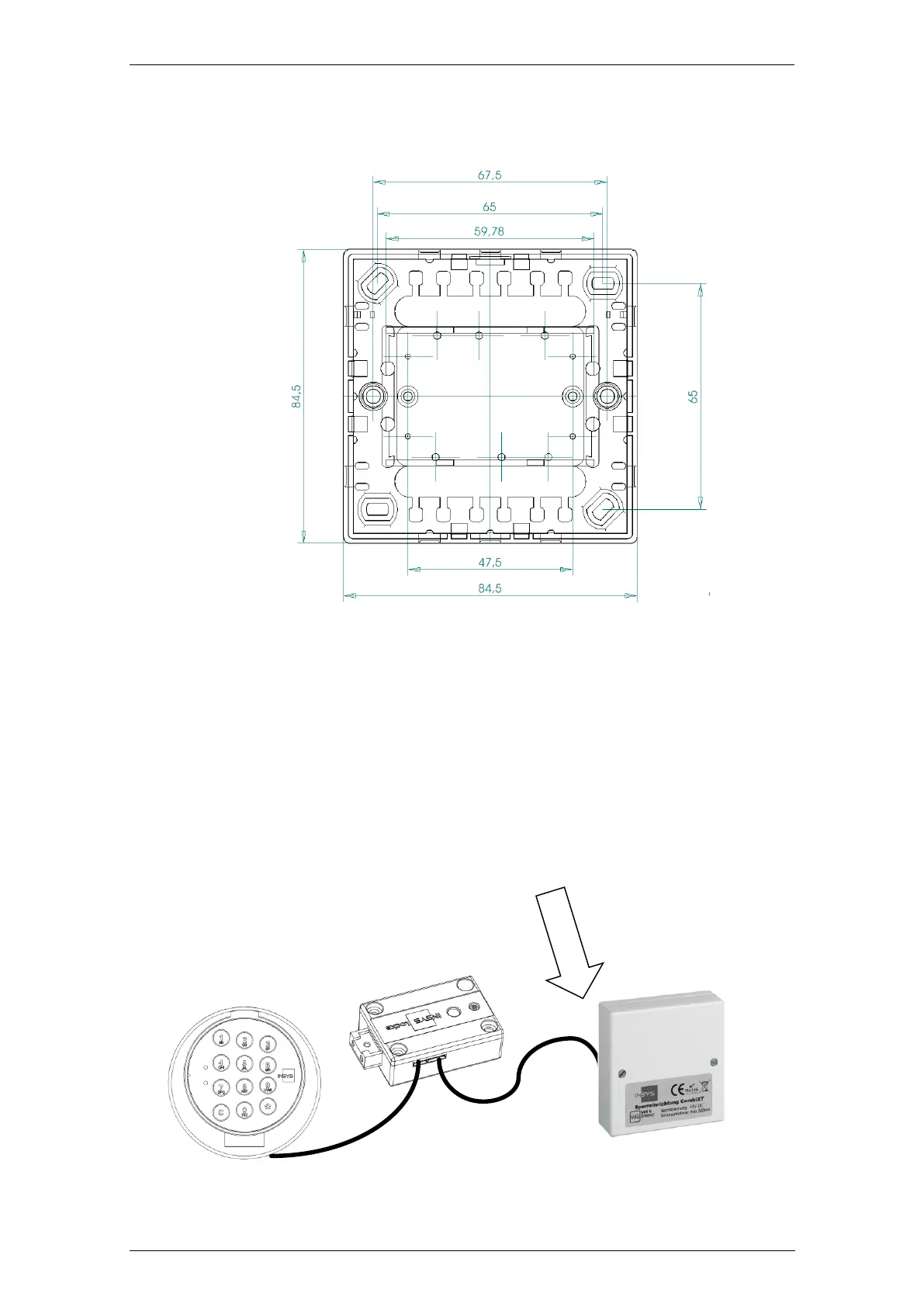

Mount the blocking device CombiXT in a secured area using the two screws (M3x10)
that come with the device. Apply a torque of max. 5 Nm.
7.4.2 Connecting CombiXT to the Lock
Connect the CombiXT blocking device to the lock by attaching the adapter cable to the
BU1 socket of CombiXT (see illustration in section 7.4.3 below) and to the terminal
socket at the lock.
Blocking device
CombiXT
