CombiLock 200 simplex / pro / RFID
Handbuch V. 1.05 75 Manual V.1.05

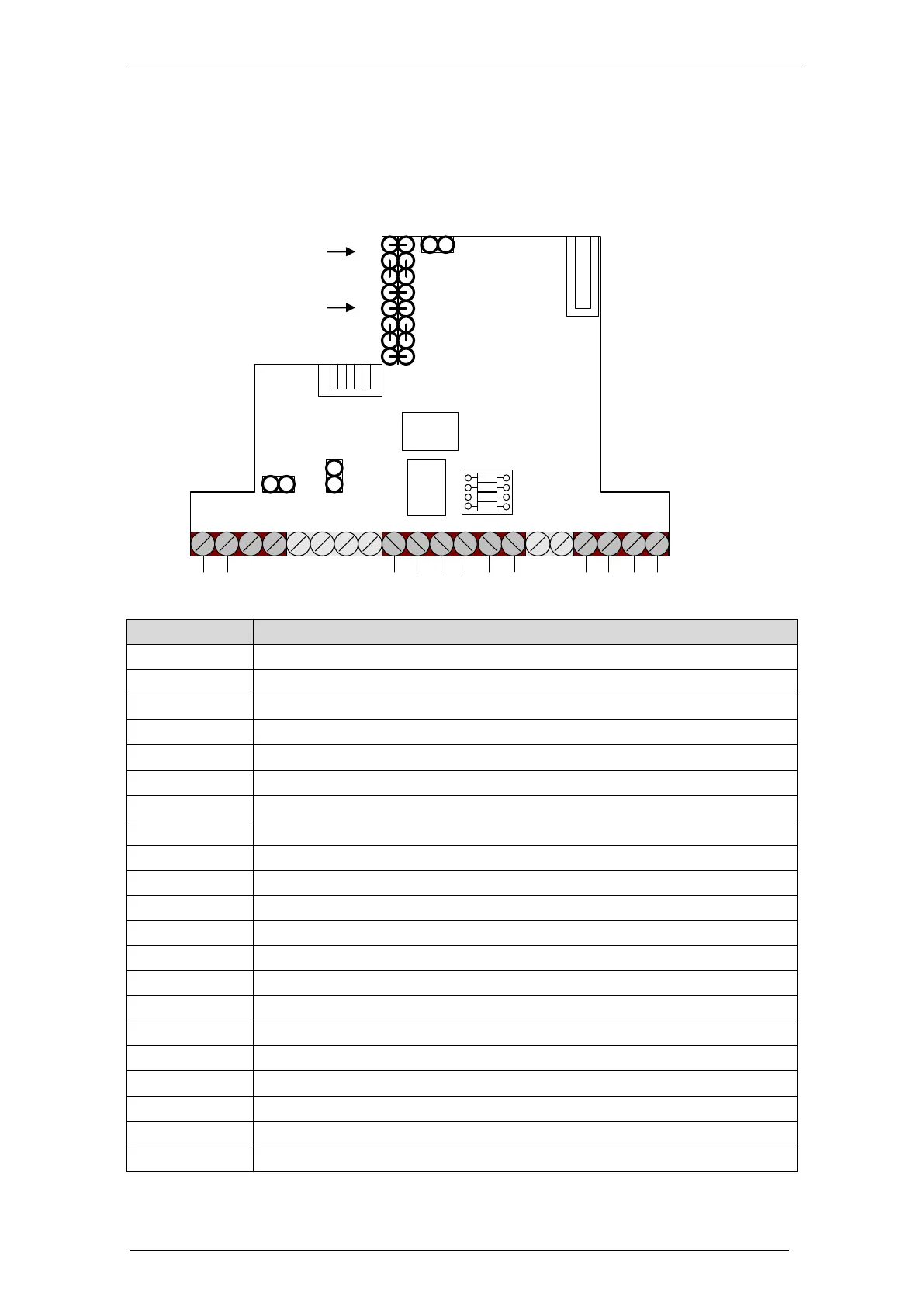

7.4.3 Connecting CombiXT to the Burglar Alarm System
Terminal
Description
1
SABO1 (anti-tamper contact)
2
SABO2
3
GND
4
12VDC
5
---
6
---
7
Status relay : NO (lock open)
8
Status relay : NC (lock closed )
9
Status relay : C
10
Alarm relay : NO (duress - / silent alarm)
11
Alarm relay : NC
12
Alarm relay : C
13
---
14
---
15
---
16
---
17
---
18
---
19
Release contact
20
GND
BU1
Socket for adapter cable for lock connection
REL1
REL2
R1
R2
R3
R4
J1
J2
J3
T1
Cover contact
BU1
120
Solder connection block
Solder point 1
Solder point 2
