CombiLock 200 simplex / pro / RFID
Handbuch V.1.05 76 Manual V. 1.05
Release Contact
With the release contact closed, the lock is released / cleared. With the contact open,
the lock is disabled / blocked and cannot be opened.
Contact closed: Lock is released / cleared
(terminals 19 and 20 electrically connected)
Contact open: Lock blocked / disabled (opening is impossible)
(terminals 19 and 20 open)
Note:
With the BAS emitting live signals (12V) as release signals only, use jumper 1.

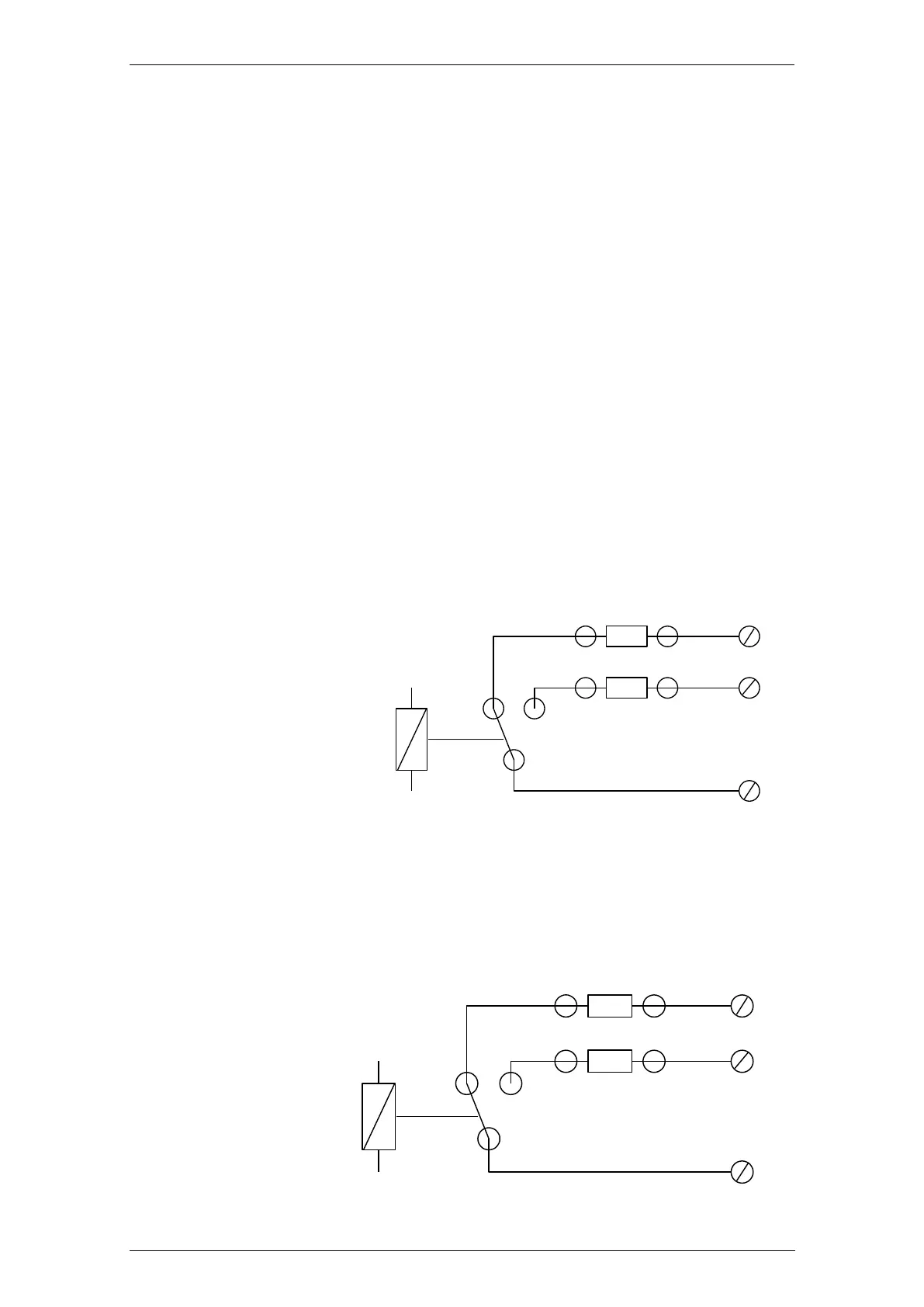

Alarm Contact:
If a user enters an alarm code when opening (=opening code, last digit+1,) at operating
unit CombiControl, a duress - / silent alarm will be triggered at the output relay. The
contact closes for about 1 sec.
Standby:
Terminals 10 and 11 closed
Silent alarm:
Triggered, lasting ca. 1 sec
Terminals 10 and 12 closed
Status Contact
The current state of the lock (open /closed) is indicated via relay ‘status’.
Lock open
Terminals 9 and 7 closed
Lock closed
Terminals 9 and 8 closed
R2
R1
Terminal 11
Terminal 10
Terminal 12
No Alarm
Alarm
Resistance monitoring
Resistance monitoring
R4
R3
Terminal 8
Terminal 7
Terminal 9
Closed
Open
Resistance monitoring
Resistance monitoring
