CombiLock 200 simplex / pro / RFID
Handbuch V. 1.05 69 Manual V.1.05

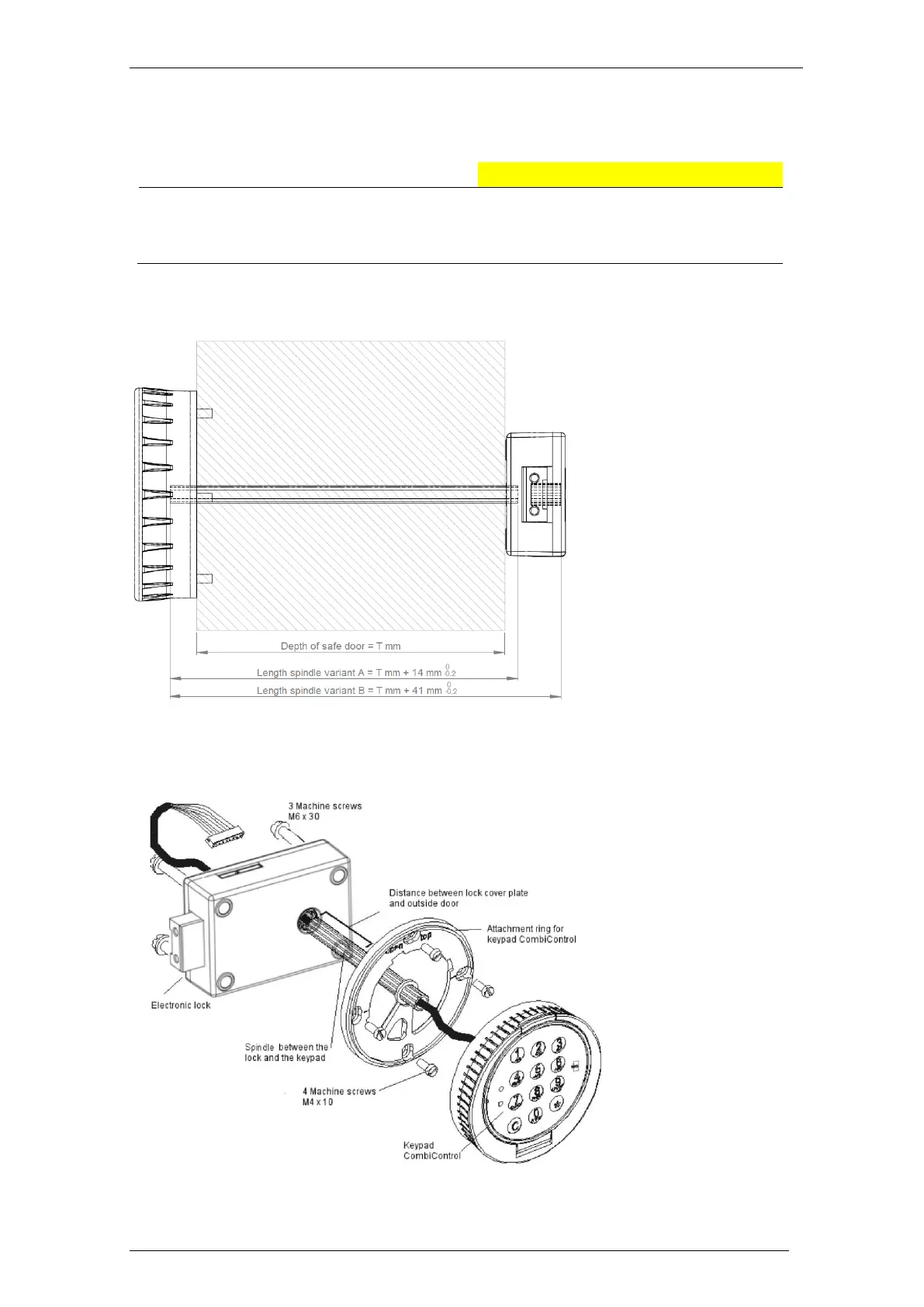

7.2.3 Shorten Spindle B and mount it
Caution
With spindle variant B shorter than specified here,
manipulation of the system might be possible.
Make sure the spindle is not shorter than specified here.
Shorten the spindle:
- to depth of safe door (Depth safe door = T mm) + length attached to lock and to
operating unit (with spindle variant B a total of approx. 41 mm).
Required spindle length = T mm + 41 mm.
Shorten the spindle variant B to T mm + 41mm (see above) and lead the wires
through the spindle centre.
