CombiLock 200 simplex / pro / RFID
Handbuch V.1.05 70 Manual V. 1.05
7.2.4 Mounting the Attachment Ring

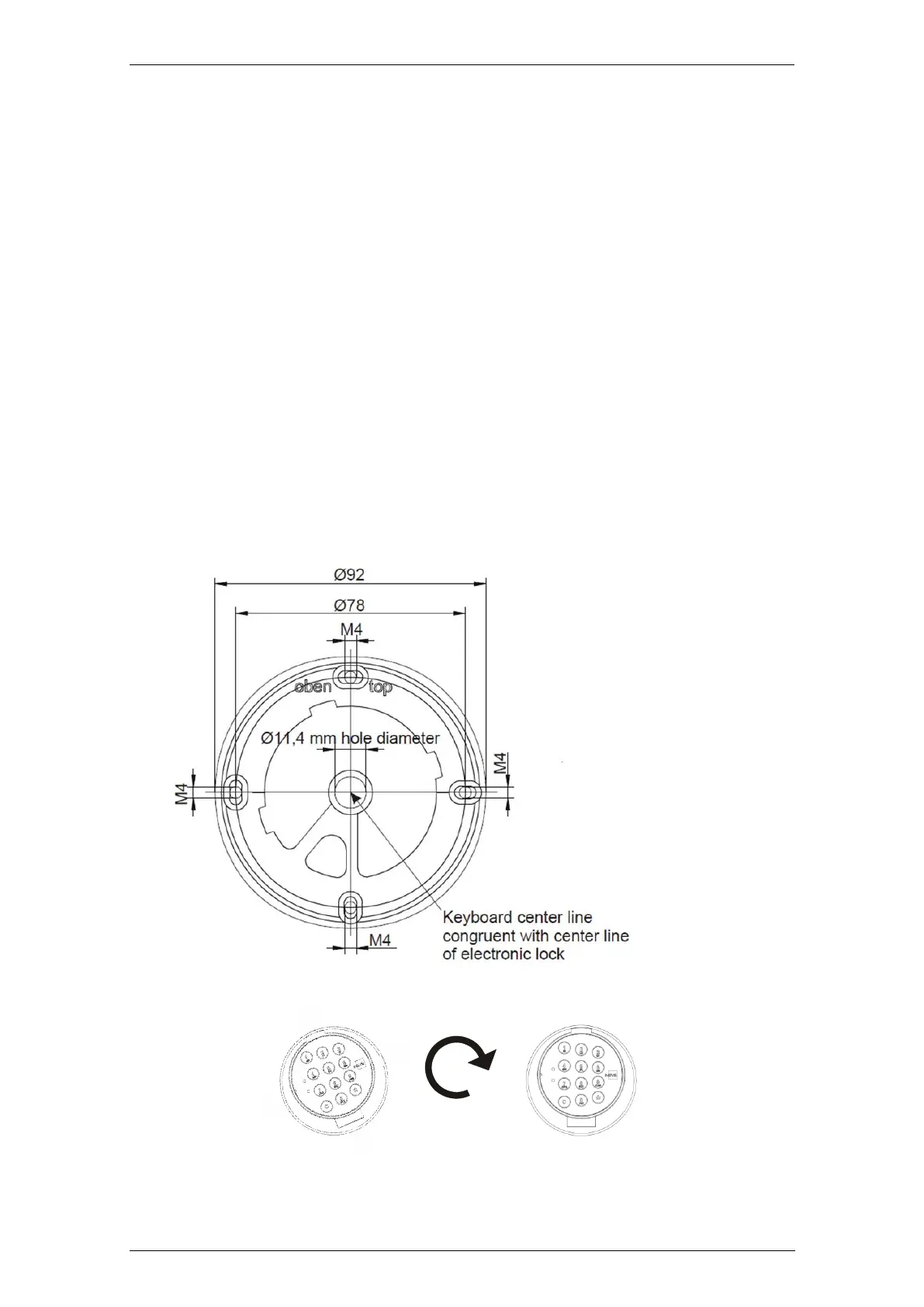

Mount the attachment ring for keypad CombiControl according to the illustration.
In order to do this, if required,
drill 4 M4 threaded holes,
and, if not carried out already (see section 7.2.1 above):
drill 1 bore for spindle variant B, Ø min. 10.5 – max. 13 mm (11.4 mm in ill. below)
or
drill 1 bore for spindle variant A, Ø min. 8.2 mm, max. 12 mm
into the safe door.
After that, with four M4 x 10 machine screws fasten the attachment ring with a
max. torque of 5 Nm ensuring that there is no damage in the area where the ring is
secured.
Attachment ring for keypad CombiControl
7.2.5 Mounting the Keypad
Mount the keypad onto the attachment ring at an angle of about 20
o
and after-
wards rotate the keypad clockwise to the right until it fits. See illustrations above.
c
a
.
2
0
°
Tastatur unter einem Winkel
von ca. 20° auf den Befestigungsring
aufstecken und anschließend durch
Drehung nach rechts in Position bringen. diese
