Getting to Know the AV Receiver —Continued
A
DIGITAL IN COAXIAL 1 and 2
These coaxial digital audio inputs are for connect-
ing components with a coaxial digital audio output,
such as a CD player or DVD player. They’re assign-
able, which means you can assign each one to an
input selector to suit your setup. See “Digital Input
Setup” on page 45.
B
COMPONENT VIDEO IN 1 and 2
These RCA component video inputs are for con-
necting components with a component video output,
such as a DVD player, DVD recorder, or DVR (dig-
ital video recorder). They’re assignable, which
means you can assign each one to an input selector
to suit your setup. See “Component Video Input
Setup” on page 45.
C
COMPONENT VIDEO OUT
This RCA component video output is for connect-
ing a TV or projector with a component video input.
D
HDMI IN 1–4 and OUT
HDMI (High Definition Multimedia Interface) con-
nections carry digital audio and digital video.
The HDMI inputs are for connecting components
with an HDMI output, such as a DVD player, DVD
recorder, or DVR (digital video recorder). They’re
assignable, which means you can assign each one to
an input selector to suit your setup. See “HDMI
Input Setup” on page 44.
The HDMI outputs are for connecting a TV or pro-
jector with an HDMI input.

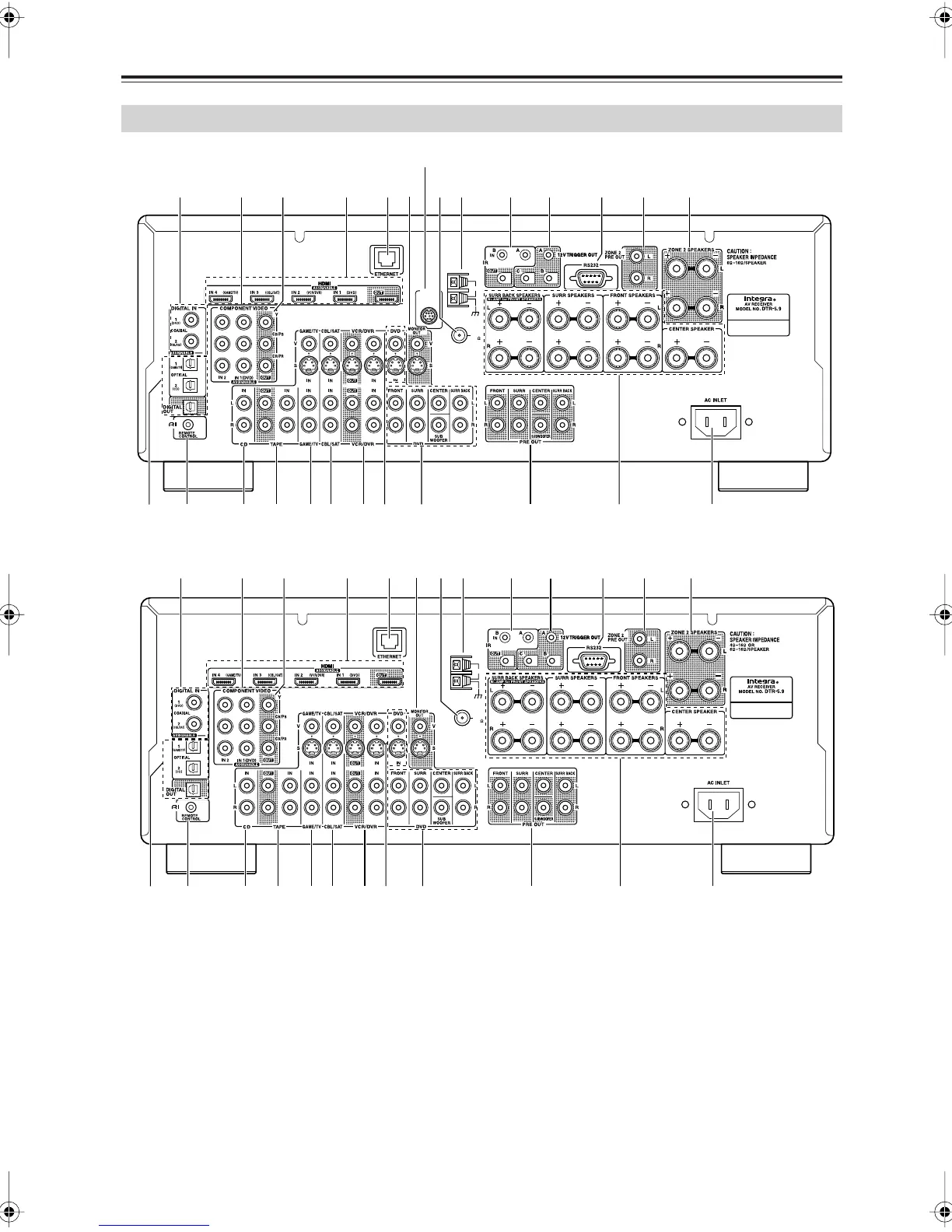

Rear Panel
ANTENNA
FM
AM
75
SIRIUS
1
PO Q R S T U V W X Y Z
4 98 J K M NL5
6
7
2 3
North American model
Only North American model
ANTENNA
FM
AM
75
1
PO Q R S T U V W X Y Z
4 98 J K M NL5
6
2 3
Other models
