Getting to Know the AV Receiver
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
A
Standby/On button (46)
Sets the AV receiver to On or Standby.
B
Standby indicator (46)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C
Ready indicator (114)
North American model doesn’t have this indicator.
Lights up when the AV receiver is on Standby and
HDMI Power Control is enabled.
D
Zone 2 indicator (128)
Flashes when Zone 2 is being set. Lights up when
Zone 2 is on.

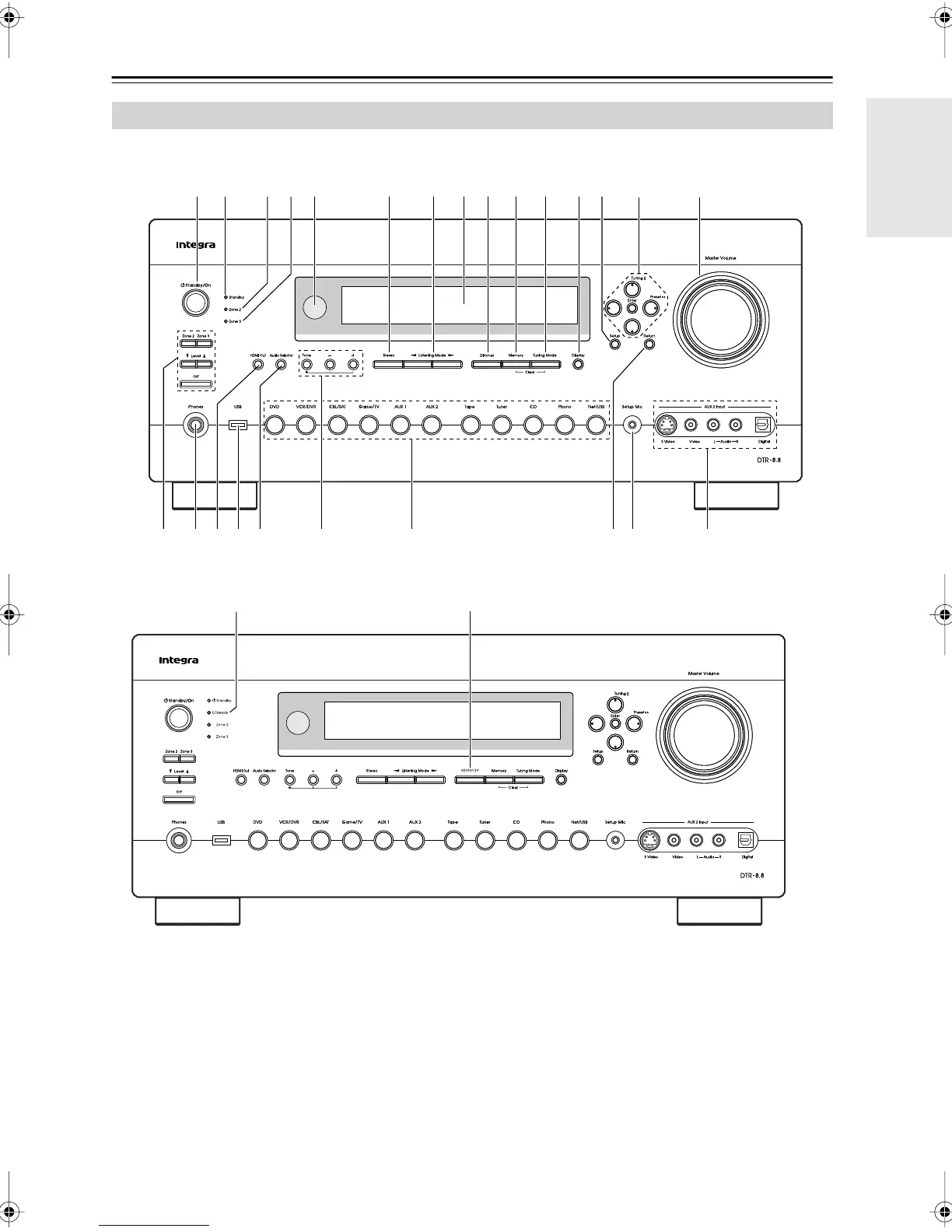

Front Panel
PO
6 97 8 J K L MN1 2
ZYRQ
54
UTS W
X
V
J
3
North American model
Other models
