Intel 1000BASE-T - 10 Base-T Balun Test Fixture; Common-Mode Output Voltage Test Circuit (Fixture 14-14)

1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
Intel Confidential 103
1000Base-T Test Fixtures and Calibration Load Fixtures
Note: Fixture 40-32’s copper tape ground plane is soldered directly to the metal shield on the RJ-45. The
fixture’s RJ-45 shield connects to the UUT shielded connector. The lower row of test pins are all
connected to the UUT chassis ground (indirectly) through the fixture’s copper ground plane.

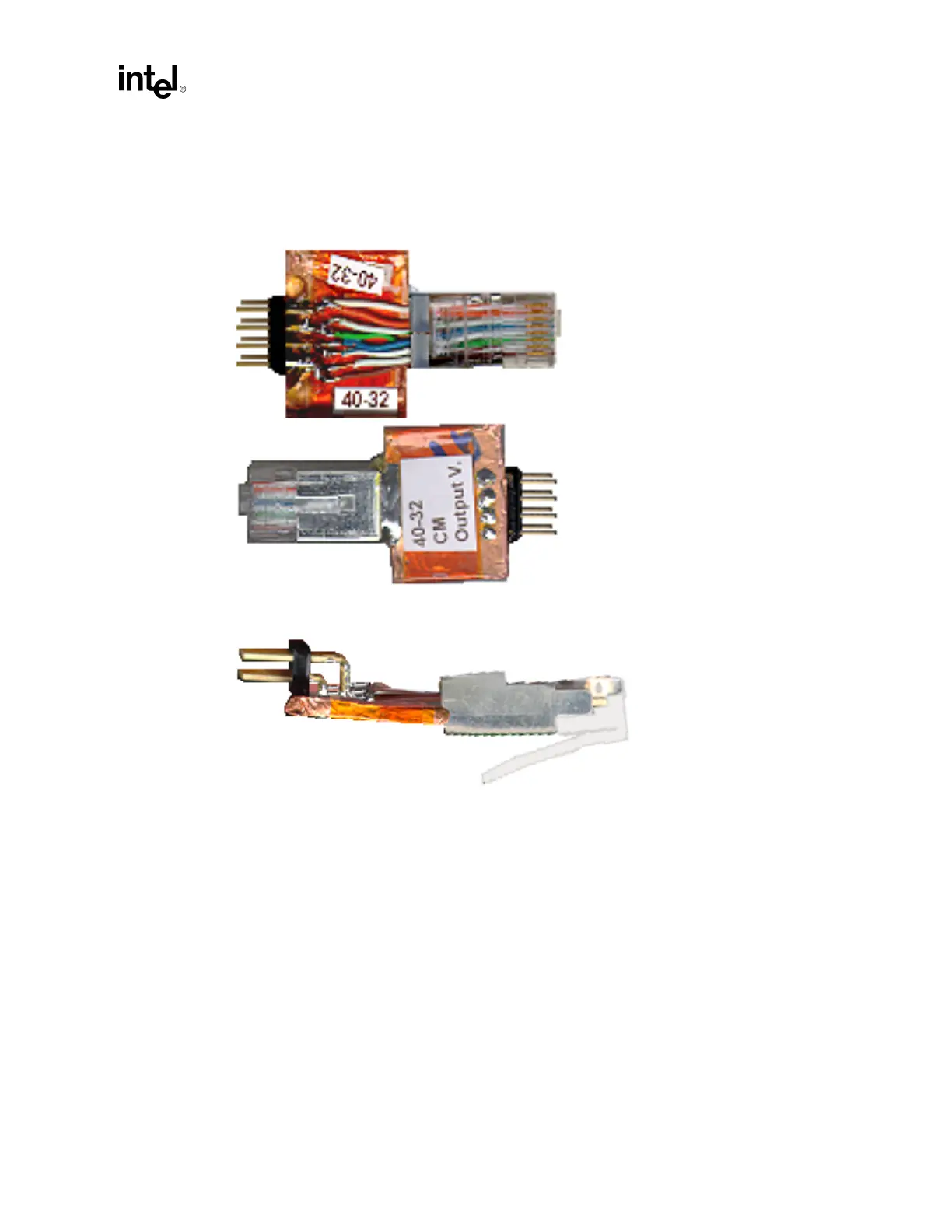

Fixture 40-32: Top View
Fixture 40-32: Bottom View
Fixture 40-32: Side View
