Intel 1000BASE-T User Manual

1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
Intel Confidential 143
100Base-TX Test Procedure for the 82544 Chip

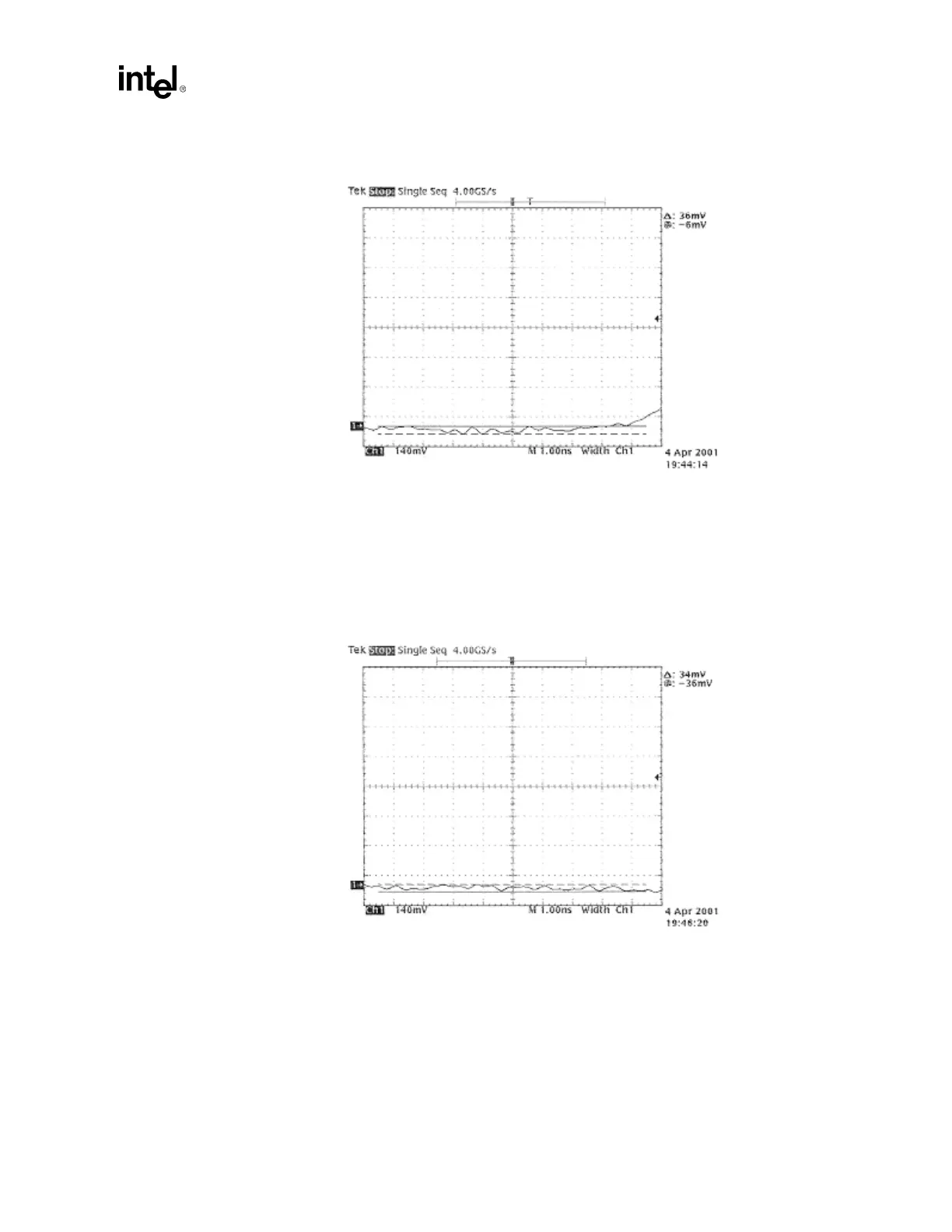

Figure I-6. Upper-left MLT-3 mid-level, upper cursor
14. Scroll horizontally through the waveform, until the right shoulder is occupying the width of
the oscilloscope display. Select the horizontal cursors. Move one cursor to the top side of the
mid-level shoulder. Move the other cursor to the bottom side of the mid-level shoulder. Record
the values of both cursors. [See Figure I-7 and Figure I-8.]
Figure I-7. Lower-right MLT-3 mid-level, lower cursor
