100BASE-TX Differential Output Voltage (UTP)
1000BASE-T/100BASE-TX/10BASE-T Physical Layer Compliance Tests Manual
34 Intel Confidential

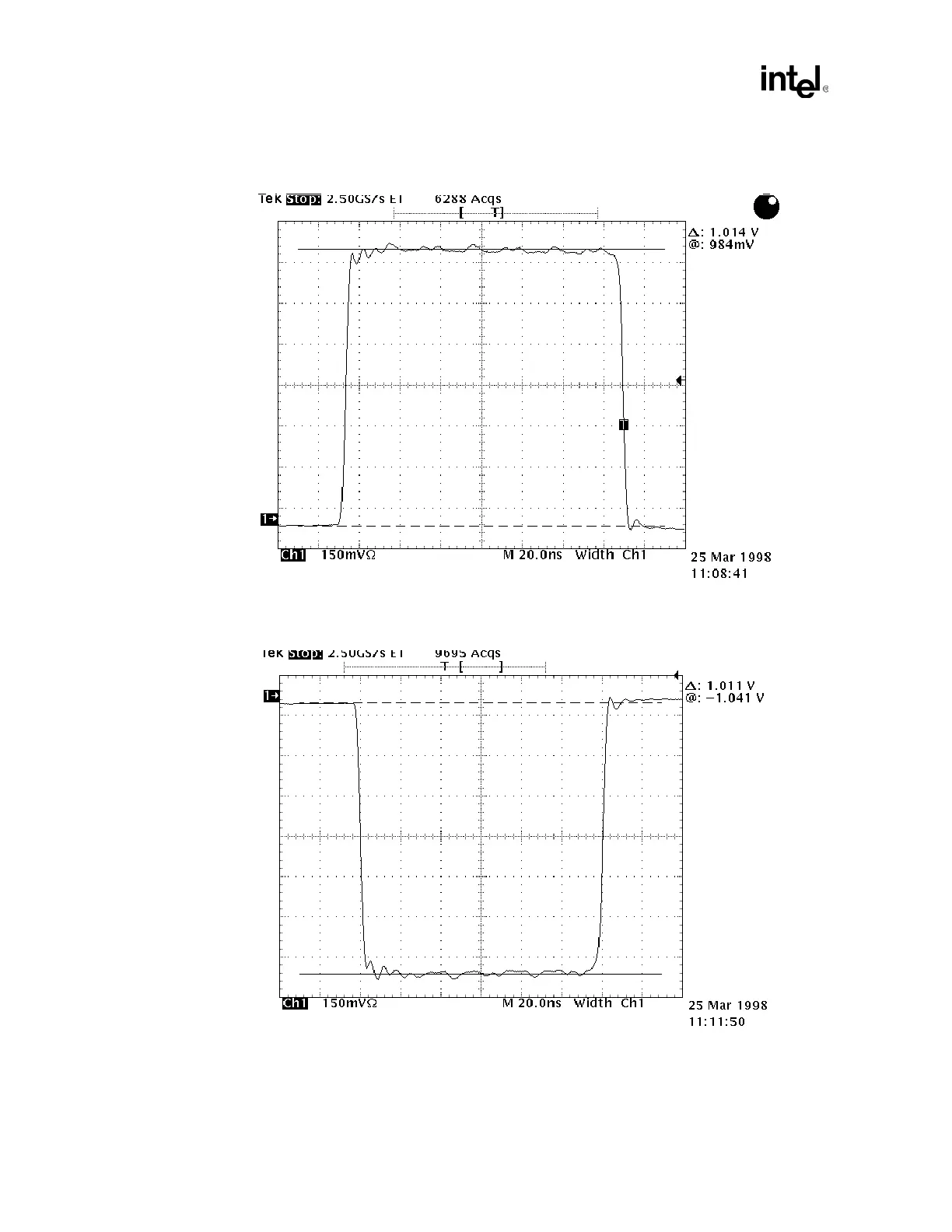

Figure 8-3 and Figure 8-4 provide examples of data for the differential output voltage
measurement.
Figure 8-3. Positive Peak Differential Output Voltage (+V
peak
= 1.014 V)
Figure 8-4. Negative Peak Differential Output Voltage (-V
peak
= 1.011 V)
8. Verify the measurements meet specifications
