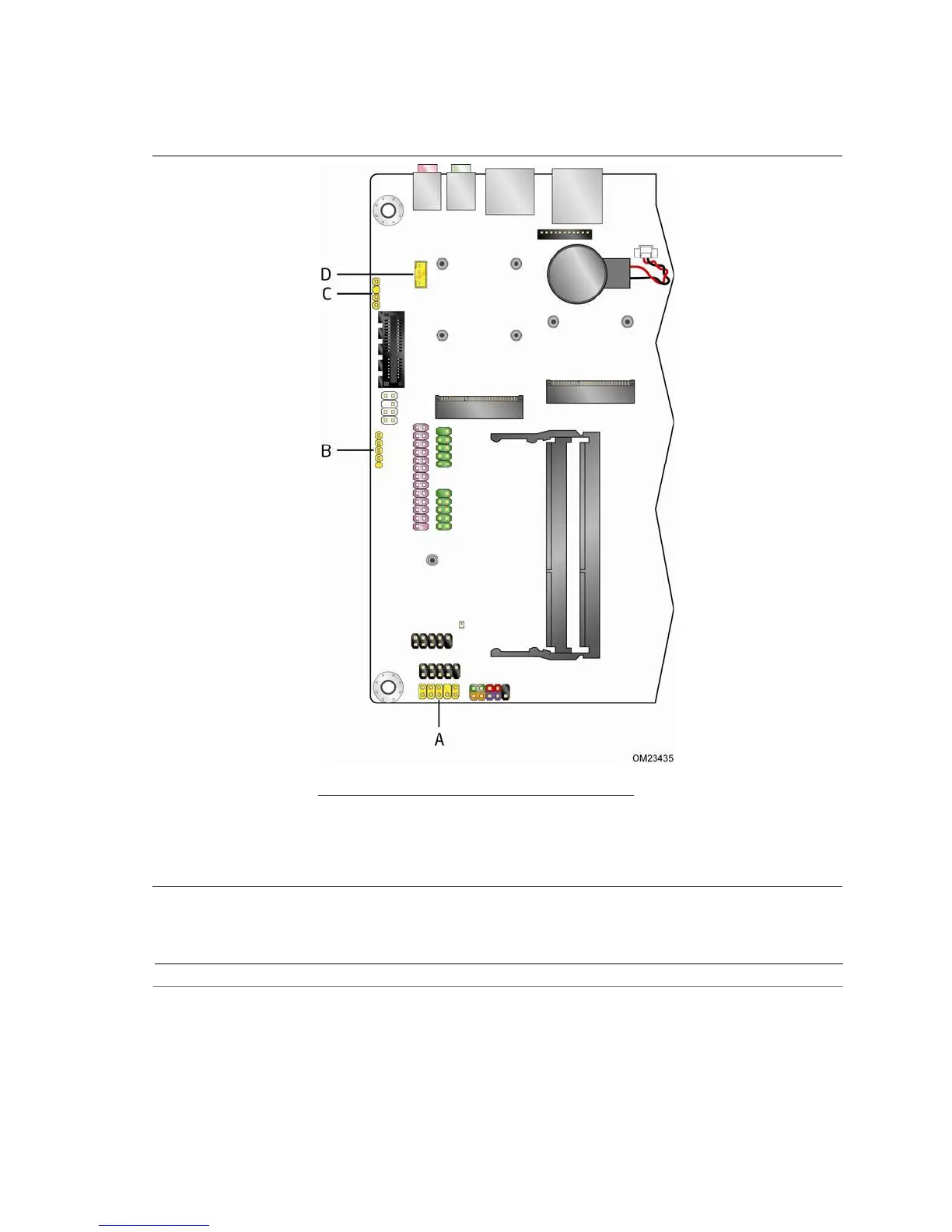

Figure 5 shows the location of the internal audio headers.
Item Description
A Front panel audio header
B DMIC header
C S/PDIF header
D Internal stereo speakers connector
Figure 7. Internal Audio Headers
For information about Refer to
The signal names of the audio headers Section 2.2.3.1, page 50
