Intel Desktop Board DN2800MT Technical Product Specification
74
chassis with a system fan should have inner chassis temperature safely below the
specified limit.

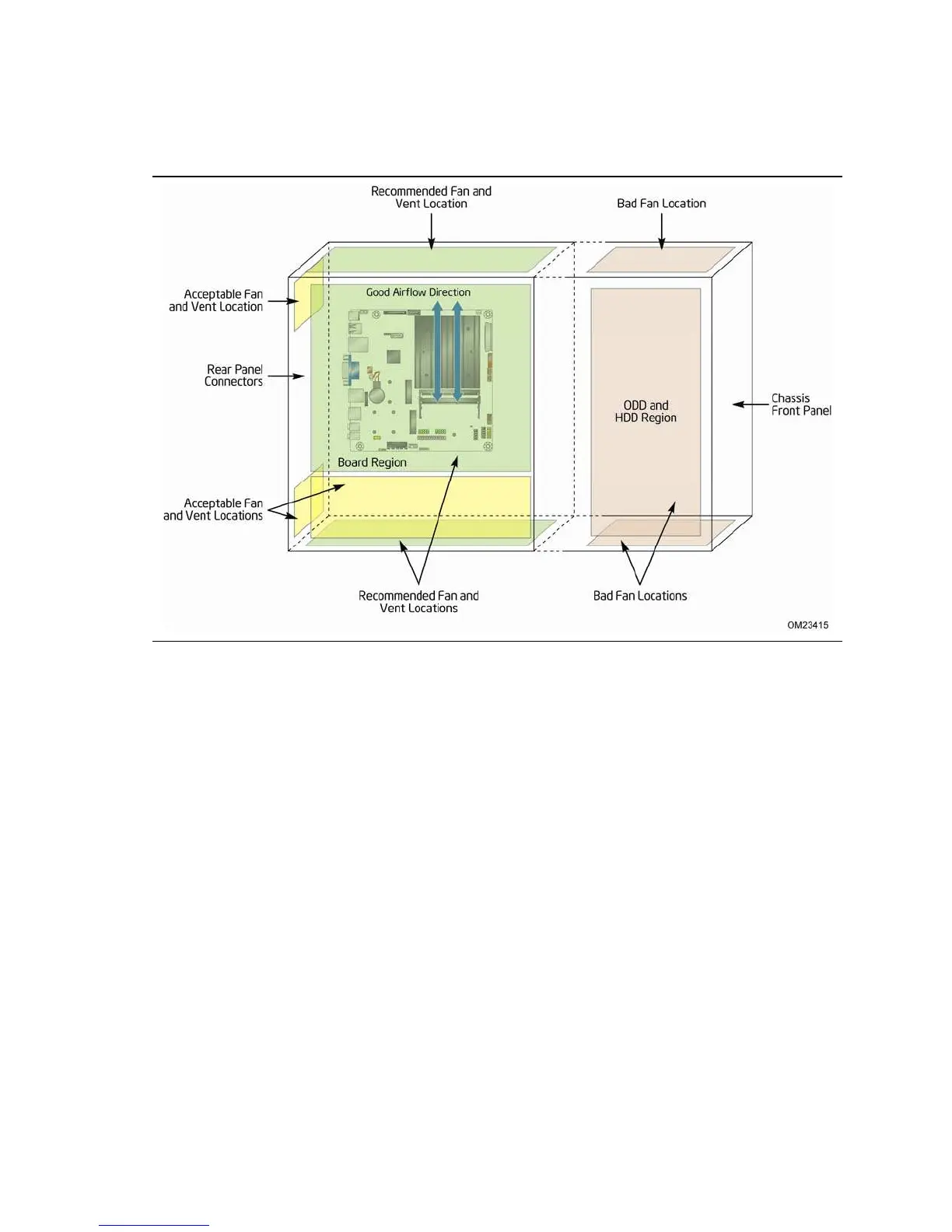

Figure 24. Fan Location Guide for Chassis Selection
(Chassis Orientation is Not Restricted)
2.8 Reliability
The Mean Time Between Failures (MTBF) prediction is calculated using component and
subassembly random failure rates. The calculation is based on the Telcordia SR-332
Issue 2, Method I, Case 3, 55 ºC ambient. The MTBF prediction is used to estimate
repair rates and spare parts requirements. The MTBF for the board is 319,009 hours.
